Husqvarna 125RB - 1993-Current - Carburetor Details

Description

Husqvarna 125RB

Model Year - 1993-Current

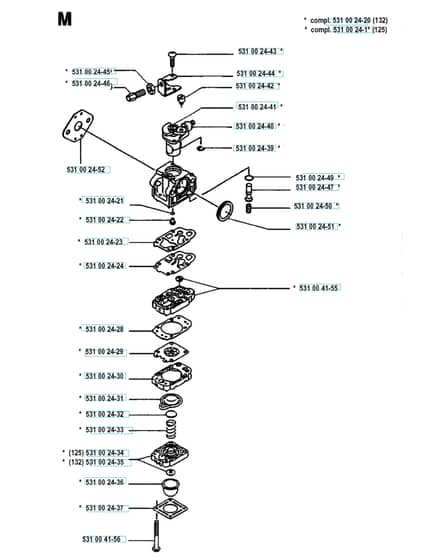

Carburetor Details - Parts Diagram

	Part No.	Details
531	HV531 00 24-20 Available to backorder	Carburettor132	£68.88 £57.40
531	HV531 00 24-23 Available to backorder	Gasket	£14.32 £11.93
531	HV531 00 24-31 Available to backorder	Diaphragm	£22.48 £18.73
531	HV531 00 24-36 Available to backorder	Bulb	£12.20 £10.17
531	HV531 00 24-43 Available to backorder	Screw	£1.28 £1.07
531	HV531 00 24-50 Available to backorder	Spring	£3.32 £2.77
531	HV531 00 24-21 Available to backorder	O-Ring	£3.82 £3.18
531	HV531 00 24-24 Available to backorder	Diaphragm	£21.78 £18.15
531	HV531 00 24-32 Available to backorder	Holder	£4.16 £3.47
531	HV531 00 24-39 Available to backorder	Circlip	£1.40 £1.17
531	HV531 00 24-45 Available to backorder	Nut	£1.56 £1.30
531	HV531 00 24-51 Available to backorder	Gasket	£18.38 £15.32
531	HV531 00 24-22 Available to backorder	Jet	£16.21 £13.51
531	HV531 00 24-28 Available to backorder	Gasket	£10.21 £8.51
531	HV531 00 24-33 Available to backorder	Spring	£3.40 £2.83
531	HV531 00 24-42 Available to backorder	Connection	£8.45 £7.04
531	HV531 00 24-47 Available to backorder	Valve	£28.56 £23.80
531	HV531 00 24-52 Available to backorder	Gasket	£5.28 £4.40
