Husqvarna 125 C - Engine

Name: Husqvarna 125 C - Engine
SKU: 125_c_current_engine-group
Price: 1.16 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 125 C

Model Year - Current

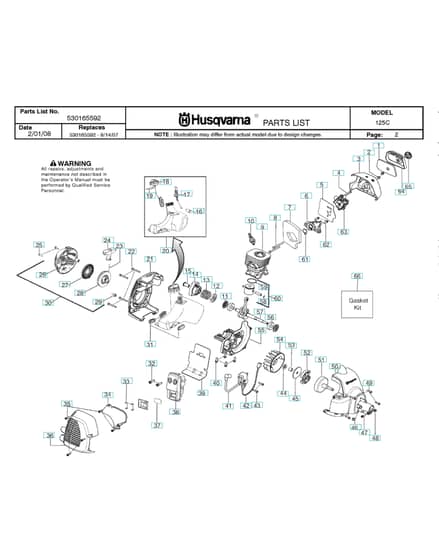

Engine - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV530 15 02-53 In stock	Air Filter	£7.92 £6.60
0	HV504 81 18-01 Available to backorder	Gasket Kit	£12.84 £10.70
0	HV530 05 87-09 Available to backorder	Bulb	£12.08 £10.07
2	HV530 01 61-01 Available to backorder	Nut	£1.82 £1.52
3	HV545 05 04-14 Available to backorder	Air Box	£34.28 £28.57
4	HV530 05 78-44 Available to backorder	Lever	£9.96 £8.30
5	HV545 05 04-02 Available to backorder	Kit	£13.06 £10.88
6	HV530 03 55-96 Available to backorder	Adapter	£11.00 £9.17
9	4335 In stock	Non-gen Cylinder Assy	£28.99 £24.16
11	HV545 05 04-03 Available to backorder	Kit	£16.73 £13.94
12	HV530 01 64-75 Available to backorder	Carrier	£15.06 £12.55
13	HV545 16 03-01 Available to backorder	Spring	£5.32 £4.43
16	HV530 09 56-46 In stock	Filter	£8.16 £6.80
17	HV545 08 18-97 In stock	Hose	£16.31 £13.59
19	HV530 01 92-93 Available to backorder	O-Ring	£3.84 £3.20
22	HV530 01 64-48 Available to backorder	Screw	£1.39 £1.16
23	HV545 02 99-01 Available to backorder	Starter Rope	£5.24 £4.37
24	HV530 15 03-18 Available to backorder	Handle	£4.88 £4.07
25	HV530 01 64-26 Available to backorder	Screw	£2.34 £1.95
26	HV545 02 96-03 Available to backorder	Starter	£29.12 £24.27
28	HV545 02 97-01 Available to backorder	Starter Pulley	£8.21 £6.84
29	HV530 01 64-68 Available to backorder	Screw	£2.34 £1.95
31	HV530 05 97-80 Available to backorder	Insulator	£7.92 £6.60
32	HV530 05 89-82 Available to backorder	Bolt	£2.58 £2.15
33	HV530 01 54-96 Available to backorder	Screw	£1.78 £1.48
34	HV530 15 04-40 Available to backorder	Protection	£7.86 £6.55
35	HV530 01 64-49 Available to backorder	Screw	£1.56 £1.30
37	HV545 03 05-01 Available to backorder	Screen	£14.40 £12.00
42	HV530 03 92-27 Available to backorder	Shorting Lead	£13.58 £11.32
44	HV530 01 64-63 Available to backorder	Washer	£2.58 £2.15
45	HV530 09 41-89 Available to backorder	Washer	£10.36 £8.63
48	HV530 01 57-68 Available to backorder	Nut	£2.72 £2.27
49	HV530 01 64-56 Available to backorder	Screw	£1.82 £1.52
50	HV545 01 75-01 Available to backorder	Housing	£50.12 £41.77
51	HV530 15 00-39 Available to backorder	Clutch Drum	£41.15 £34.29
53	HV530 05 78-52 Available to backorder	Ring	£6.08 £5.07
54	HV530 03 92-42 Available to backorder	Flywheel	£48.79 £40.66
56	HV545 01 34-01 Available to backorder	Bearing	£7.28 £6.07
57	HV545 03 00-01 Available to backorder	Crankshaft	£136.16 £113.47
58	HV530 01 51-62 Available to backorder	Circlip	£2.34 £1.95
59	HV530 01 92-83 Available to backorder	Piston Ring	£7.02 £5.85
60	HV545 03 03-01 Available to backorder	Piston	£53.06 £44.22
62	HV530 01 58-97 Available to backorder	Screw	£2.04 £1.70
63	HV545 08 18-50 Available to backorder	Carburettor Kit	£66.18 £55.15
64	HV530 05 78-46 Available to backorder	Cover	£9.13 £7.61
65	HV530 05 97-96 Available to backorder	Knob Assy Airbox Cover	£5.45 £4.54
