Husqvarna 122HD45 - Carburetor & Air Filter

Husqvarna 122HD45 - Carburetor & Air Filter

Part No. 122hd45_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 122HD45 - Carburetor & Air Filter

Husqvarna 122HD45 - Carburetor & Air Filter

Description

Husqvarna 122HD45

Model Year - -

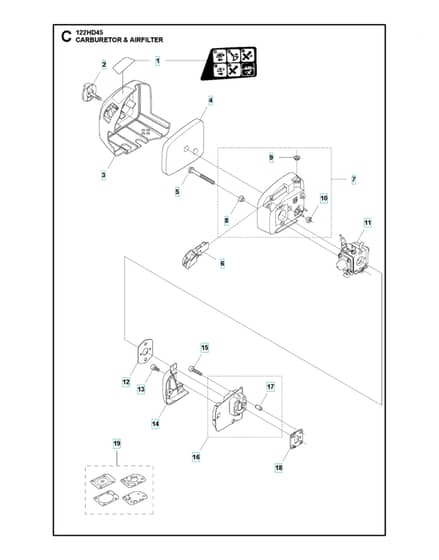

Carburetor & Air Filter - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV576 64 56-01 Available to backorder	Decal		£3.73 £3.11
	2		HV537 21 32-09 Available to backorder	Knob		£6.26 £5.22
	3		HV523 01 31-01 Available to backorder	Air Filter Cover		£21.78 £18.15
	4		HV523 01 34-01 In stock	Air Filter		£8.58 £7.15
	5		HV573 92 58-02 Available to backorder	Screw Itxscft		£2.05 £1.71
	6		HV523 01 25-01 In stock	Choke		£5.28 £4.40
	7		HV523 01 27-01 Available to backorder	Filter Holder Assy		£16.87 £14.06
	10		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	12		HV525 54 85-01 In stock	Gasket		£1.07 £0.89
	13		HV574 44 40-02 Available to backorder	Screw Itxsct		£0.77 £0.64
	14		HV576 27 75-01 Available to backorder	Bracket		£4.94 £4.12
	15		HV525 76 09-04 Available to backorder	Screw Itxscm		£1.56 £1.30
	16		HV525 74 17-01 Available to backorder	Manifold		£15.85 £13.21
	17		HV522 91 13-01 Available to backorder	Tubular Rivet		£1.68 £1.40
	18		HV522 91 85-01 Available to backorder	Gasket		£1.01 £0.84
	19		HV588 98 60-01 In stock	Carburettor Kit		£8.05 £6.71

Description

Husqvarna 122HD45

Model Year - -

Carburetor & Air Filter - Parts Diagram
