Husqvarna 122 L - Bevel Gear

Husqvarna 122 L - Bevel Gear

Part No. 122_l_1995_03_bevel_gear-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 122 L - Bevel Gear

Husqvarna 122 L - Bevel Gear

Description

Husqvarna 122 L

Model Year - 1995-03

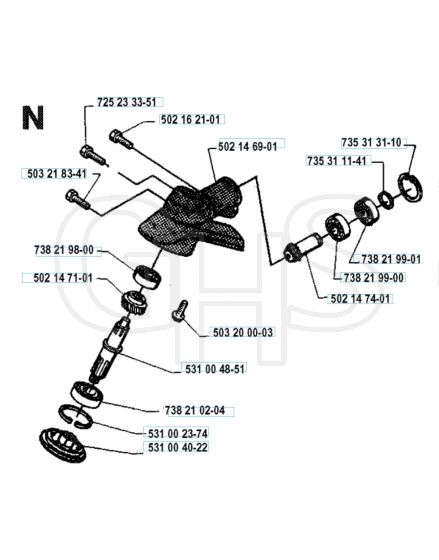

Bevel Gear - Parts Diagram

Ref.		Img.	Part No.	Details
	502		HV502 14 69-01 Available to backorder	Gear Housing		£87.36 £72.80
	503		HV503 21 83-41 Available to backorder	Screw		£3.01 £2.51
	503		HV503 20 00-03 Available to backorder	Screw		£1.57 £1.31
	735		HV735 31 31-10 Available to backorder	Circlip		£0.77 £0.64
	738		HV738 21 99-01 Available to backorder	Ball Bearing		£6.31 £5.26
	738		HV738 21 98-00 Available to backorder	Ball Bearing		£6.31 £5.26
	738		HV738 21 99-00 Available to backorder	Ball Bearing		£6.31 £5.26
	738		HV738 21 02-04 Available to backorder	Ball Bearing		£6.97 £5.81

Description

Husqvarna 122 L

Model Year - 1995-03

Bevel Gear - Parts Diagram
