Husqvarna 120MKII - Carburetor & Air Filter

Name: Husqvarna 120MKII - Carburetor & Air Filter
SKU: 120mkii_carburetor_air_filter-group
Price: 1.3 GBP
Availability: InStock

Part No. 120mkii_carburetor_air_filter-group

Description

Husqvarna 120MKII

Model Year -

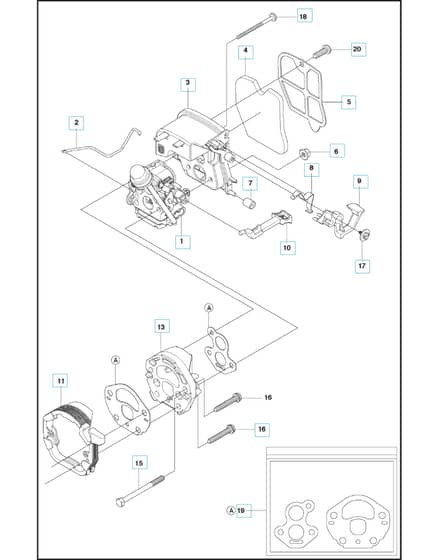

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
1	HV586 93 62-02 In stock	Carburettorcarburetor With Purge Bulb	£62.57 £52.14
2	HV577 81 52-01 Available to backorder	Throttlethrottle Wire	£5.20 £4.33
3	HV575 49 34-01 Available to backorder	Air Filterhousing	£11.66 £9.72
4	HV545 06 18-01 In stock	Air Filterair Filter	£6.32 £5.27
5	HV545 15 18-01 Available to backorder	Filterfilter Plate	£7.70 £6.42
6	HV530 01 61-01 Available to backorder	Nutnut	£1.56 £1.30
7	HV545 06 19-01 Available to backorder	Isolatorisolator Filter Housing	£1.68 £1.40
8	HV545 06 34-01 Available to backorder	Switch. Springswitch Spring	£2.52 £2.10
9	HV545 06 17-01 Available to backorder	Switch Leverswitch Lever	£6.68 £5.57
10	HV545 06 16-01 Available to backorder	Choke Knobchoke Knob	£6.40 £5.33
11	HV545 06 15-01 Available to backorder	Carb Adaptor Sealcarb Adaptor Seal	£4.67 £3.89
13	HV577 63 65-01 Available to backorder	Adaptoradaptor Carburetor	£16.04 £13.37
16	HV545 15 83-01 Available to backorder	Carb Adaptor Screwcarb Adaptor Screw	£2.30 £1.92
17	HV530 01 60-80 Available to backorder	Screwscrew	£1.56 £1.30
18	HV545 07 49-01 Available to backorder	Top Stud-Carburetortop Stud-Carburetor	£2.06 £1.72
19	HV545 08 18-92 In stock	Gasket Kitgasket Kit	£14.38 £11.98
20	HV530 01 63-49 Available to backorder	Screwscrew	£1.56 £1.30
