Husqvarna 120I - Gear Box

Name: Husqvarna 120I - Gear Box
SKU: 120i_gear_box-group
Price: 0.64 GBP
Availability: InStock

Part No. 120i_gear_box-group

Description

Husqvarna 120I

Model Year -

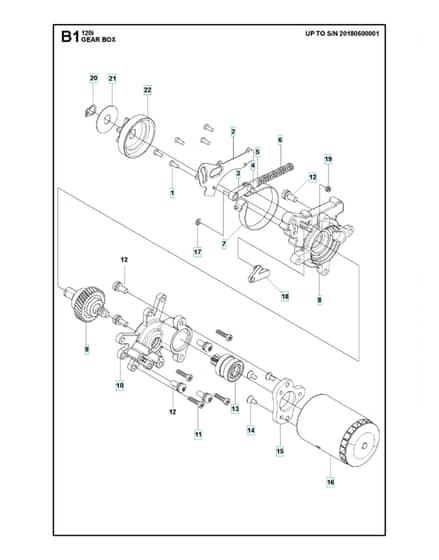

Gear Box - Parts Diagram

	Part No.	Details
1	HV586 90 30-01 Available to backorder	Screw	£1.15 £0.96
2	HV585 58 97-01 Available to backorder	Cover Plate	£7.06 £5.88
3	HV585 60 35-01 Available to backorder	Plate	£17.32 £14.43
4	HV586 90 26-01 Available to backorder	Pen	£1.40 £1.17
5	HV585 59 44-01 Available to backorder	Plate	£7.06 £5.88
6	HV585 59 05-01 Available to backorder	Brake Spring	£3.84 £3.20
8	HV582 48 68-01 Available to backorder	Gearbox	£33.23 £27.69
9	HV582 86 43-01 Available to backorder	Shaft	£51.32 £42.77
10	HV582 45 47-01 Available to backorder	Gearbox	£34.72 £28.93
11	HV585 81 90-02 Available to backorder	Screw	£1.56 £1.30
12	HV586 90 28-01 Available to backorder	Screw	£2.05 £1.71
13	HV582 86 42-01 Available to backorder	Pinion	£29.95 £24.96
14	HV582 56 11-01 Available to backorder	Screw	£1.46 £1.22
15	HV582 45 67-01 Available to backorder	Connector	£12.18 £10.15
16	HV582 49 22-01 Available to backorder	Motor1000W. 36V. Bldc. 3 Phases. Oblique Shaft	£95.88 £79.90
17	HV587 37 77-01 Available to backorder	Clamp	£0.77 £0.64
18	HV582 48 87-01 Available to backorder	Drive Link	£5.24 £4.37
19	HV586 90 27-01 Available to backorder	Nut	£1.56 £1.30
20	HV574 79 77-01 Available to backorder	Locking Ring	£2.42 £2.02
21	HV585 60 20-01 Available to backorder	Washer	£2.94 £2.45
22	HV536 91 43-01 Available to backorder	Sprocket"3/8""-6T"	£30.25 £25.21
