Husqvarna 120 Lc - Bevel Gear 3

Husqvarna 120 Lc - Bevel Gear 3

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 120 Lc - Bevel Gear 3

Husqvarna 120 Lc - Bevel Gear 3

Description

Husqvarna 120 Lc

Model Year - 1993-02

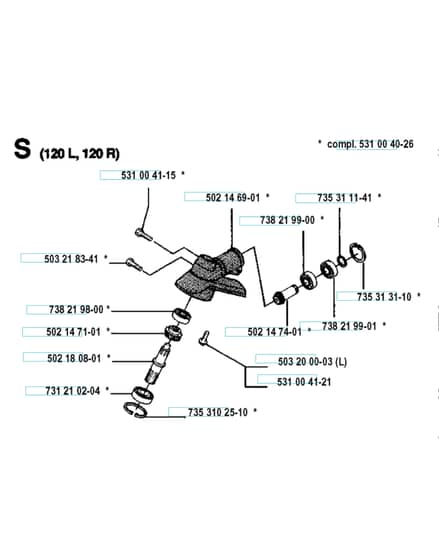

Bevel Gear 3 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	502		HV502 14 69-01 Available to backorder	Gear Housing		£91.26 £76.05
	502		HV502 18 08-01 Available to backorder	Axis		£13.58 £11.32
	503		HV503 21 83-41 Available to backorder	Screw		£3.06 £2.55
	503		HV503 20 00-03 Available to backorder	Screwl		£1.66 £1.38
	531		HV531 00 41-15 Available to backorder	Screw		£2.34 £1.95
	735		HV735 31 31-10 Available to backorder	Circlip		£0.77 £0.64
	738		HV738 21 98-00 Available to backorder	Ball Bearing		£6.36 £5.30
	738		HV738 21 99-00 Available to backorder	Ball Bearing		£6.36 £5.30
	738		HV738 21 99-01 Available to backorder	Ball Bearing		£6.36 £5.30

Description

Husqvarna 120 Lc

Model Year - 1993-02

Bevel Gear 3 - Parts Diagram
