Stihl HTA86 - Drive Tube Assembly -443442002 - Parts Diagram

Name: Stihl HTA86 - Drive Tube Assembly -443442002 - Parts Diagram
SKU: hta86_drive_tube_assembly_443442002-group
Price: 0.29 GBP
Availability: InStock

Part No. hta86_drive_tube_assembly_443442002-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HTA86 - Drive Tube Assembly -443442002 - Parts Diagram

Description

Stihl HTA86 - Drive Tube Assembly -443442002 - Parts Diagram

	Part No.	Details
1	ST0000 790 8801 In stock	Loop (Contains 45718)	£12.13 £10.11
2	ST9022 341 0980 In stock	Pan head screw IS M5x16	£0.95 £0.79
3	ST9210 261 0700 Available to backorder	Hexagon nut M5	£0.35 £0.29
4	STLA03 710 7111 Available to backorder	Drive tube assembly (Contains 7+ 17)	£117.72 £98.10
7	ST4857 967 7200 Available to backorder	Warning pictogram HTA	£2.15 £1.79

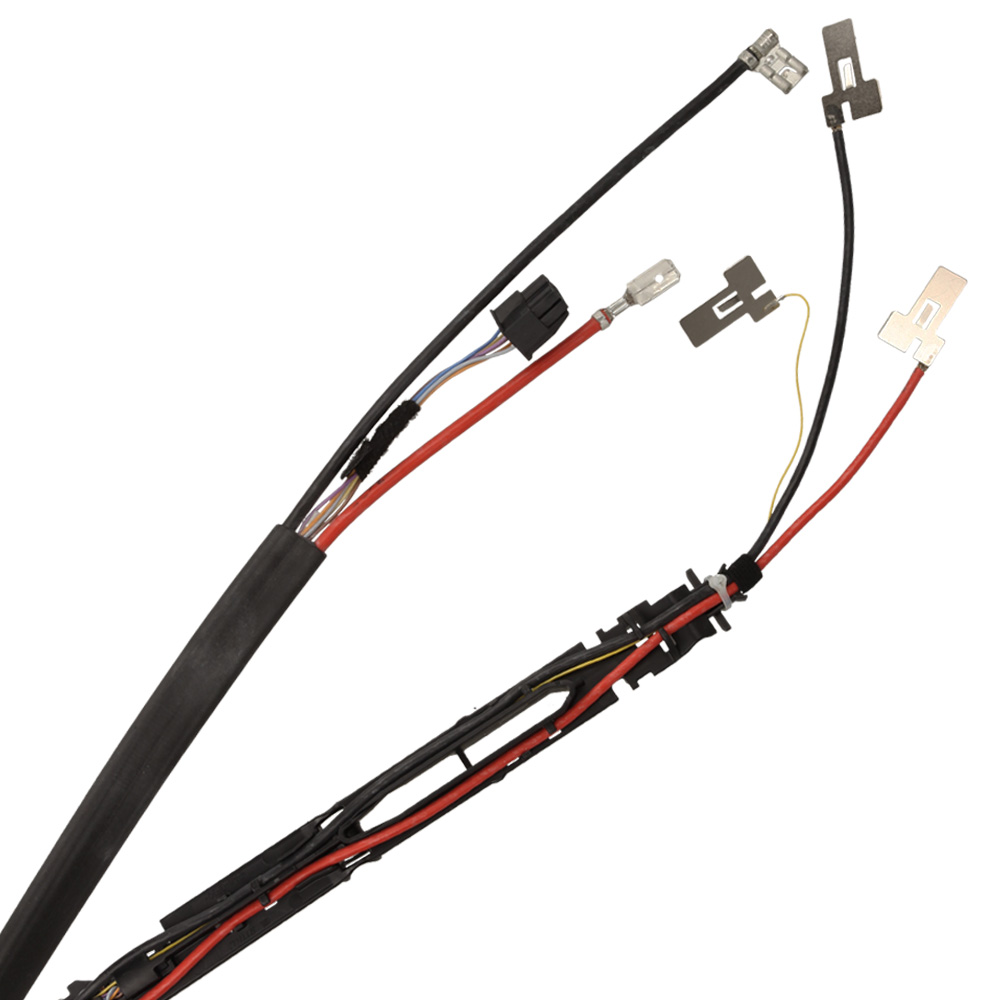

10	STLA03 440 3005 In stock	Wiring harness (Contains 11)	£125.40 £104.50
11	ST4860 404 0800 Available to backorder	Contact plate	£5.23 £4.36
12	ST4859 430 0502 Available to backorder	Switch	£11.28 £9.40

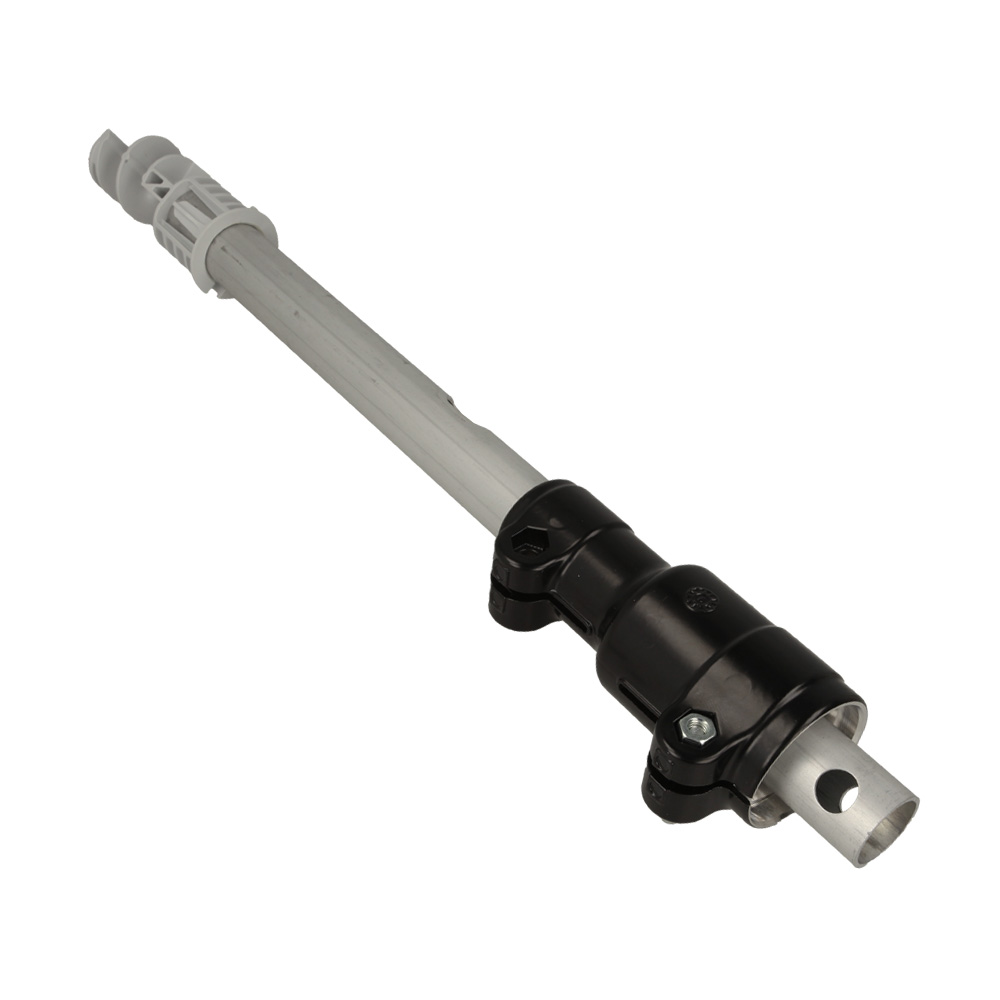

13	STLA03 820 5200 Available to backorder	Tube with clamp (Contains 14 - 16 + 24)	£61.56 £51.30
14	ST9294 021 0140 In stock	Washer 6.4	£0.37 £0.31
15	ST9022 341 1370 In stock	Pan head screw IS M6x30	£1.31 £1.09
16	ST9210 319 0900 In stock	Hexagon nut M6	£0.48 £0.40
17	STLA03 793 7700 Available to backorder	Plug	£3.41 £2.84
18	STLA03 740 3700 Available to backorder	Clamping piece (Contains 19 + 20)	£35.28 £29.40
19	ST9440 003 1851 In stock	Blind rivet 3x5-ST/ST	£0.83 £0.69
20	ST4182 716 1920 Available to backorder	Sealing ring	£1.03 £0.86
21	STLA03 710 7300 Available to backorder	Sleeve (Contains 22)	£8.42 £7.02
22	ST4182 711 9822 Available to backorder	Spacer ring	£6.14 £5.12
23	ST9074 478 4435 In stock	Pan head self-tapping screw IS-P6x19	£0.92 £0.77
24	ST4857 448 1202 Available to backorder	Lead retainer	£6.14 £5.12
