Stihl HSA150.0 T - Cutter Bar 750 Mm - Parts Diagram

Description

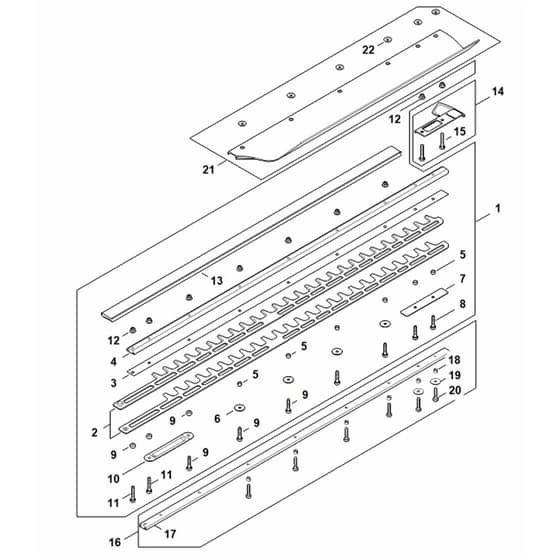

Stihl HSA150.0 T - Cutter Bar 750 Mm - Parts Diagram

	Part No.	Details
1	ST4237 710 5905 Available to backorder	Cutter bar assy. 750 mm / 30" T (Contains 2 - 13)	£198.00 £165.00
2	ST4237 710 6055 Available to backorder	Blade 750 mm / 30" T	£158.40 £132.00
3	ST4237 713 2201 Available to backorder	Blade friction plate 750 mm / 30" T	£14.23 £11.86
4	ST4237 641 4602 Available to backorder	Guide 750 mm / 30" T	£17.06 £14.22
5	ST4237 641 4903 In stock	Sleeve 4.92 mm	£1.19 £0.99
6	ST4237 958 0500 In stock	Washer	£1.43 £1.19
7	ST4237 717 3100 Available to backorder	Cover plate	£7.06 £5.88
8	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
9	ST4237 711 2500 In stock	Sleeve 4.87 mm	£1.52 £1.27
10	ST4237 711 4800 Available to backorder	Stiffener	£7.06 £5.88
11	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
12	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
13	ST4237 790 9202 Available to backorder	Blade guard 750 mm / 30" T	£12.40 £10.33
14	ST4237 790 9800 Available to backorder	Guide guard (Contains 15)	£16.49 £13.74
16	ST4237 007 1002 Available to backorder	Blade clearance adjuster kit 750 mm T (Contains 17 - 20)	£35.40 £29.50
17	ST4237 740 6502 Available to backorder	Guide 750 mm / 30" T	£17.06 £14.22
18	ST4237 641 4900 Available to backorder	Sleeve 8 x 3.8 mm	£1.14 £0.95
20	ST4237 716 0400 Available to backorder	Spline screw IS-M5x25	£1.76 £1.47
21	ST4237 740 3300 Available to backorder	Catcher blade 750 mm / 30" T (Contains 22)	£31.40 £26.17
22	ST0000 963 1303 Available to backorder	Bushing	£0.58 £0.48
