Stihl HSA150.0 T - Cutter Bar 1000 Mm - Parts Diagram

Description

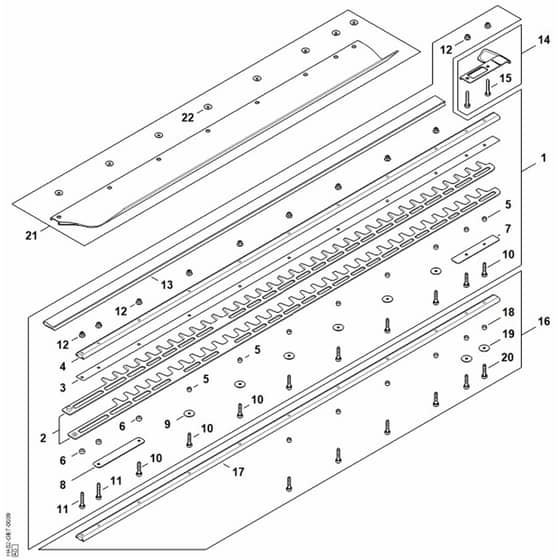

Stihl HSA150.0 T - Cutter Bar 1000 Mm - Parts Diagram

	Part No.	Details
1	ST4237 710 5906 Available to backorder	Cutter bar assy. 1000 mm / 40" T (Contains 2 - 13)	£246.72 £205.60
2	ST4237 710 6056 Available to backorder	Blade 1000 mm / 40" T	£198.00 £165.00
3	ST4237 713 2202 Available to backorder	Blade friction plate 1000 mm / 40" T	£14.69 £12.24
4	ST4237 641 4603 Available to backorder	Guide 1000 mm / 40" T	£17.86 £14.88
5	ST4237 641 4903 In stock	Sleeve 4.92 mm	£1.19 £0.99
6	ST4237 711 2500 In stock	Sleeve 4.87 mm	£1.52 £1.27
7	ST4237 717 3100 Available to backorder	Cover plate	£7.06 £5.88
8	ST4237 711 4800 Available to backorder	Stiffener	£7.06 £5.88
9	ST4237 958 0500 In stock	Washer	£1.43 £1.19
10	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
11	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
12	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
13	ST4237 790 9203 Available to backorder	Blade guard 1000 mm / 40" T	£13.43 £11.19
14	ST4237 790 9800 Available to backorder	Guide guard (Contains 15)	£16.49 £13.74
16	ST4237 007 1003 Available to backorder	Blade clearance adjuster kit 1000 mm (Contains 17 - 20)	£43.69 £36.41
17	ST4237 740 6503 Available to backorder	Guide 1000 mm / 40" T	£17.98 £14.98
18	ST4237 641 4900 Available to backorder	Sleeve 8 x 3.8 mm	£1.14 £0.95
20	ST4237 716 0400 Available to backorder	Spline screw IS-M5x25	£1.76 £1.47
21	ST4237 740 3301 Available to backorder	Catcher blade 1000 mm / 40" T (Contains 22)	£42.23 £35.19
22	ST0000 963 1303 Available to backorder	Bushing	£0.58 £0.48
