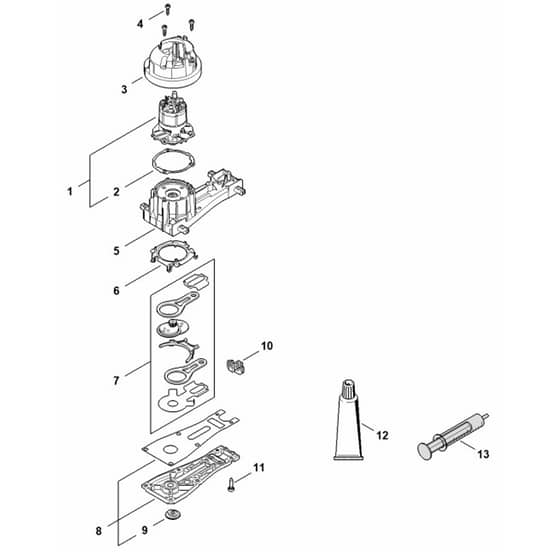

Stihl HSA150.0 R - Gear Head, Electric Motor - Parts Diagram

Description

Stihl HSA150.0 R - Gear Head, Electric Motor - Parts Diagram

	Part No.	Details
1	STHA02 600 0204 Available to backorder	Electric motor (Contains 2)	£148.56 £123.80
2	STHA02 649 0302 Available to backorder	Gasket	£1.26 £1.05
3	STHA02 080 0901 Available to backorder	Air guide shroud	£22.54 £18.78
4	ST9075 478 3016 Available to backorder	Pan head self-tapping screw IS-D4x16	£0.79 £0.66
5	STHA02 640 0700 Available to backorder	Planetary gearbox	£176.04 £146.70
6	STHA02 641 0900 Available to backorder	Cover	£4.20 £3.50
7	STHA02 760 7100 Available to backorder	Connecting rod kit	£94.08 £78.40
8	STHA02 640 5802 Available to backorder	Gearbox cover R (Contains 9)	£70.44 £58.70
9	STHA02 630 0800 Available to backorder	Plug	£4.20 £3.50
10	ST9075 478 4136 In stock	Pan head self-tapping screw IS-D5x20	£0.95 £0.79
11	ST4237 649 0304 In stock	Gasket	£2.23 £1.86
12	ST0781 120 1109 In stock	Multi-purpose grease (tube 80 g)	£9.02 £7.52
13	ST0000 890 2500 Available to backorder	Grease gun	£1.82 £1.52
