Stihl HSA150.0 R - Cutter Bar 750 Mm - Parts Diagram

Name: Stihl HSA150.0 R - Cutter Bar 750 Mm - Parts Diagram
SKU: hsa150_0_r_cutter_bar_750_mm-group
Price: 0.4 GBP
Availability: InStock

Part No. hsa150_0_r_cutter_bar_750_mm-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA150.0 R - Cutter Bar 750 Mm - Parts Diagram

Description

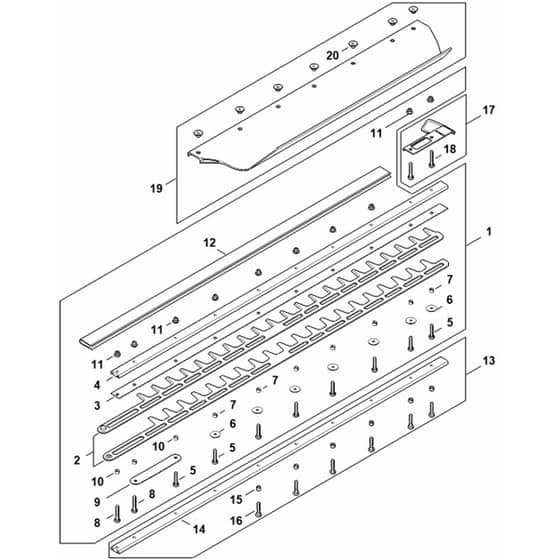

Stihl HSA150.0 R - Cutter Bar 750 Mm - Parts Diagram

	Part No.	Details
1	STHA02 710 5907 Available to backorder	Cutter bar assy. 750 mm/30" RE (Contains 2 - 11)	£243.48 £202.90
2	ST4237 710 6057 Available to backorder	Blade 750 mm / 30" R	£158.40 £132.00
3	ST4237 713 2204 In stock	Blade friction plate 750 mm / 30" R	£15.22 £12.68
4	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.08 £0.90
5	ST4237 958 0500 In stock	Washer	£1.43 £1.19
6	ST4237 641 4901 In stock	Sleeve 8 x 5.62 mm	£1.16 £0.97
7	ST9022 341 1070 In stock	Spline screw IS-M5x30	£1.04 £0.87
8	ST4237 641 4604 In stock	Guide 750 mm / 30" R	£17.29 £14.41
9	STHA02 711 4801 Available to backorder	Reinforcement	£7.18 £5.98
10	ST4237 711 2501 In stock	Sleeve 5.57 mm	£1.76 £1.47
11	ST9216 263 0710 In stock	Hexagon nut M5	£0.48 £0.40
12	ST4237 790 9210 Available to backorder	Blade guard 750 mm / 30" R	£13.32 £11.10
13	ST4237 007 1009 Available to backorder	Blade clearance adjuster kit 750 mm R (Contains 14 - 16)	£35.40 £29.50
14	ST4237 740 6505 Available to backorder	Guide 750 mm / 30" R	£17.29 £14.41
15	ST4237 641 4902 Available to backorder	Sleeve 8 x 4.5 mm	£1.14 £0.95
16	ST4237 716 0400 Available to backorder	Spline screw IS-M5x25	£1.76 £1.47
17	ST4237 790 9801 Available to backorder	Guide guard (Contains 18)	£21.26 £17.72
19	ST4237 740 3306 Available to backorder	Catcher blade 750 mm / 30" R (Contains 20)	£51.41 £42.84
20	ST0000 963 1303 Available to backorder	Bushing	£0.58 £0.48
