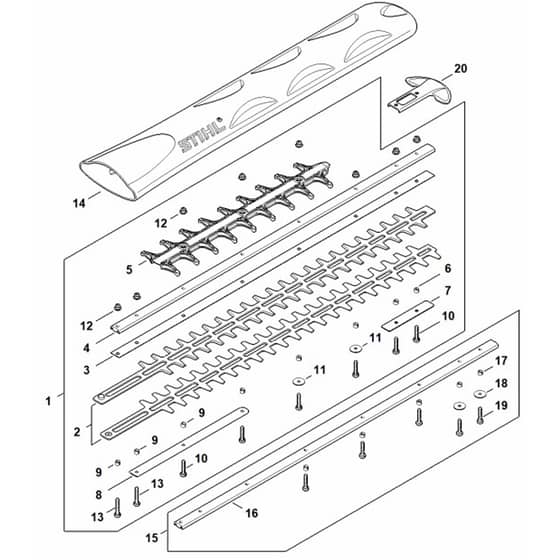

Stihl HSA140.0 T - Cutter Bar 600 Mm - Parts Diagram

Name: Stihl HSA140.0 T - Cutter Bar 600 Mm - Parts Diagram
SKU: hsa140_0_t_cutter_bar_600_mm-group
Price: 0.37 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl HSA140.0 T - Cutter Bar 600 Mm - Parts Diagram

Description

Stihl HSA140.0 T - Cutter Bar 600 Mm - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	STHA02 710 5901 Available to backorder	Cutter bar assy. 600mm/24" TD (Contains 2 - 13)	£191.88 £159.90
2	ST4237 710 6051 In stock	Blade 600 mm / 24" T	£166.10 £138.42
3	ST4237 713 2200 Available to backorder	Blade friction plate 600 mm / 24" T	£12.98 £10.82
4	ST4237 641 4601 Available to backorder	Guide 600 mm / 24" T	£16.06 £13.38
5	ST4869 740 9500 Available to backorder	Cutter guard T	£19.14 £15.95
6	ST4237 641 4903 In stock	Sleeve 4.92 mm	£1.10 £0.92
7	ST4237 717 3100 Available to backorder	Cover plate	£6.82 £5.68
8	STHA02 711 4800 Available to backorder	Reinforcement	£13.42 £11.18
9	ST4237 711 2500 In stock	Sleeve 4.87 mm	£1.42 £1.18
10	ST9022 371 1050 In stock	Spline screw IS-M5x25	£1.00 £0.83
11	ST4237 958 0500 In stock	Washer	£1.32 £1.10
12	ST9216 263 0710 In stock	Hexagon nut M5	£0.44 £0.37
13	ST9022 341 1070 In stock	Spline screw IS-M5x30	£0.98 £0.82
14	ST4237 790 9208 Available to backorder	Blade guard 600 mm / 24"	£17.26 £14.38
15	ST4237 007 1001 Available to backorder	Blade clearance adjuster kit 600 mm T (Contains 16 - 19)	£27.28 £22.73
16	ST4237 740 6501 Available to backorder	Guide 600 mm / 24" T	£16.06 £13.38
17	ST4237 641 4900 Available to backorder	Sleeve 8 x 3.8 mm	£1.10 £0.92
19	ST4237 716 0400 In stock	Spline screw IS-M5x25	£1.66 £1.38
20	ST4237 792 9006 In stock	Guide guard	£13.96 £11.63
