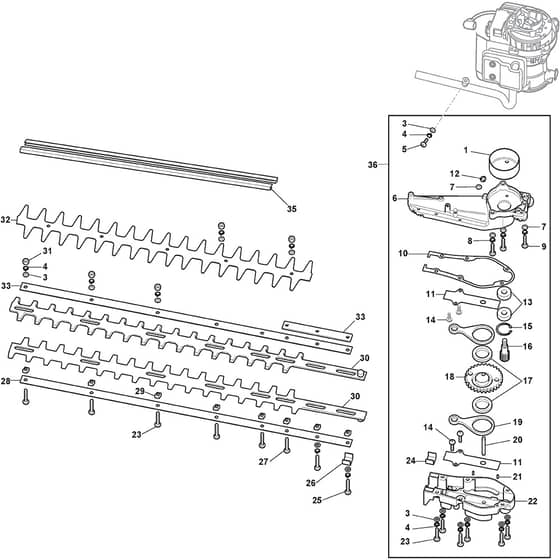

HS 55 - 2012 - 252900004/12 - Castel Garden Hedge Trimmer Cutting Unit Diagram

Description

Castel Garden HS 55 Parts Diagram

Product Name - HS 55

Model Year - 2012

Model Type - HTJ 550

Art.N - 252900004/12

Engine Model -

	Part No.	Details
1	MO123050010/0 Available to backorder	Clutch Drum Assy	£12.80 £10.67
3	MO123657013/0 Available to backorder	Washer	£1.33 £1.11
4	MO123657017/0 Available to backorder	Washer	£2.24 £1.87
5	MO123878115/0 Available to backorder	Screw	£1.55 £1.29
7	MO123657020/0 Available to backorder	Washer	£1.33 £1.11
9	MO123878116/0 Available to backorder	Screw	£1.33 £1.11
10	MO123280082/0 Available to backorder	Crankcase Gasket	£1.97 £1.64
11	MO123208418/0 Available to backorder	Flange	£1.84 £1.53
12	MO112379520/0 Available to backorder	Grease Dispenser	£1.70 £1.42
13	MO114215222/0 Available to backorder	Ball Bearing	£9.01 £7.51
14	MO123878020/0 Available to backorder	Screw	£1.33 £1.11
16	MO123570052/0 Available to backorder	Pinion	£9.01 £7.51
17	MO114215223/0 Available to backorder	Bearing	£11.12 £9.27
18	MO123664000/0 Available to backorder	Gear Assy	£18.88 £15.73
19	MO123041502/0 Available to backorder	Connecting Rod	£19.28 £16.07
21	MO123665004/0 Available to backorder	Needle	£1.33 £1.11
23	MO123878081/0 Available to backorder	Screw	£1.75 £1.46
25	MO123878118/0 Available to backorder	Screw	£1.55 £1.29
26	MO123208419/0 Available to backorder	Plate	£1.33 £1.11
27	MO123878113/0 Available to backorder	Screw	£1.33 £1.11
28	MO123294006/0 Available to backorder	Blade Holder	£6.05 £5.04
29	MO123044222/0 Available to backorder	Bushing	£1.33 £1.11
30	MO123305004/0 In stock	Blade	£51.17 £42.64
31	MO123120014/0 Available to backorder	Nut	£1.33 £1.11
32	MO123600081/0 Available to backorder	Blade Guard	£7.31 £6.09
33	MO123294007/0 Available to backorder	Blade Holder	£5.22 £4.35
35	MO123085002/0 Available to backorder	Blade Cover	£5.65 £4.71
36	MO118804982/0 Available to backorder	Engine Support Ass.Y	£190.03 £158.36
