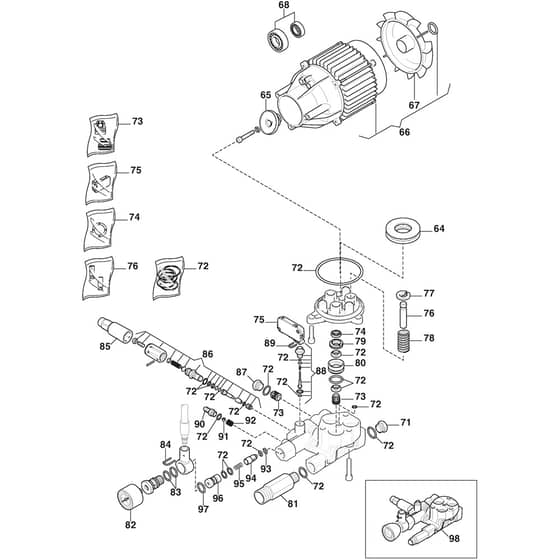

HPS 650 RG - 2018-2025 - 2C1502804/UKS - Stiga Pressure Washer Electric Pump Diagram

Part No. hps_650_rg_2c1502804_uks_electric_pump-group
HPS 650 RG - 2018-2025 - 2C1502804/UKS - Stiga Pressure Washer Electric Pump Diagram
HPS 650 RG - 2018-2025 - 2C1502804/UKS - Stiga Pressure Washer Electric Pump Diagram

Description

Stiga HPS 650 RG Parts Diagram

Product Name - HPS 650 RG

Model Year - 2018-2025

Model Type - HPS650RG

Art.N - 2C1502804/UKS

Engine Model -

Ref. Img. Part No. Details
  64 Bearing
Bearing
MO118821403/0
Available to backorder
Bearing
£12.53 £10.44

  65 Wobble Plate
Wobble Plate
MO118820950/0
Available to backorder
Wobble Plate
£9.17 £7.64

  66 Electric Motor
Electric Motor
MO118820948/0
Available to backorder
Electric Motor
£436.74 £363.95

  67 Fan Motor
Fan Motor
MO118820954/0
Available to backorder
Fan Motor
£1.55 £1.29

  68 Bearings Kit
Bearings Kit
MO118821128/0
Available to backorder
Bearings Kit
£20.69 £17.24

  72 Gasket Set
Gasket Set
MO118820917/0
Available to backorder
Gasket Set
£25.76 £21.47

  73 Valve Kit
Valve Kit
MO118820912/0
Available to backorder
Valve Kit
£8.22 £6.85

  74 Oil Seal Kit
Oil Seal Kit
MO118820914/0
Available to backorder
Oil Seal Kit
£10.56 £8.80

  75 Tss Box Assembly Replaced part 118821082.0
Tss Box Assembly Replaced part 118821082.0
MO118821082/1
Available to backorder
Tss Box Assembly Replaced part 118821082.0
£20.96 £17.47

  76 Piston Kit
Piston Kit
MO118820913/0
Available to backorder
Piston Kit
£12.26 £10.22

  77 Retainer
Retainer
MO118820925/0
Available to backorder
Retainer
£2.11 £1.76

  78 Spring
Spring
MO118820931/0
Available to backorder
Spring
£6.77 £5.64

  79 Bush
Bush
MO118820926/0
Available to backorder
Bush
£1.84 £1.53

  80 Bush
Bush
MO118820927/0
Available to backorder
Bush
£6.90 £5.75

  81 Fitting
Fitting
MO118820952/0
Available to backorder
Fitting
£10.27 £8.56

  82 Pressure Gauge
Pressure Gauge
MO118820918/0
Available to backorder
Pressure Gauge
£29.57 £24.64

  83 O Ring
O Ring
MO118820919/0
Available to backorder
O Ring
£1.55 £1.29

  84 Fork
Fork
MO118821009/0
Available to backorder
Fork
£4.00 £3.33

  85 Knob
Knob
MO118821010/0
Available to backorder
Knob
£4.88 £4.07

  86 Valve Kit Adjustment
Valve Kit Adjustment
MO118820916/0
Available to backorder
Valve Kit Adjustment
£49.26 £41.05

  88 Tss Retrofit Kit
Tss Retrofit Kit
MO118820915/0
Available to backorder
Tss Retrofit Kit
£15.71 £13.09

  90 Fitting
Fitting
MO118820968/0
Available to backorder
Fitting
£6.19 £5.16

  91 Ball
Ball
MO118820920/0
Available to backorder
Ball
£1.55 £1.29

  92 Spring
Spring
MO118820922/0
Available to backorder
Spring
£1.55 £1.29

  94 Shutter
Shutter
MO118820930/0
Available to backorder
Shutter
£3.10 £2.58

  95 Spring
Spring
MO118820970/0
Available to backorder
Spring
£3.10 £2.58

  96 Injector
Injector
MO118820967/0
Available to backorder
Injector
£8.86 £7.38

  98 Head Assembly
Head Assembly
MO118821022/0
Available to backorder
Head Assembly
£189.12 £157.60


Description

Stiga HPS 650 RG Parts Diagram

Product Name - HPS 650 RG

Model Year - 2018-2025

Model Type - HPS650RG

Art.N - 2C1502804/UKS

Engine Model -
