HP470 - 2007 - 299174628/BQ - Mountfield Rotary Mower Upper Handle Diagram

Description

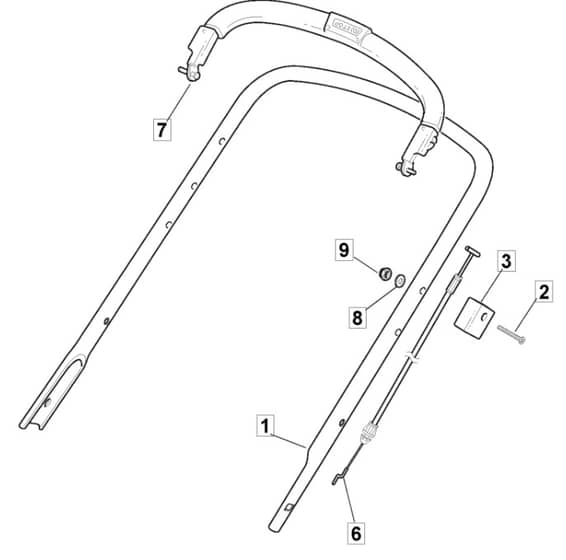

Mountfield HP470 Parts Diagram

Product Name - MOUNTFIELD HP470

Model Year - 2007

Model Type - ES 464

Art.N - 299174628/BQ

	Part No.	Details
1	MO381006579/1 Available to backorder	Handle. Upper Part	£16.48 £13.73
2	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
3	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
6	MO181000657/0 Available to backorder	Cable. Thread Engine Brake B&S 450.500 Series	£15.85 £13.21
7	MO381003298/1 In stock	Lever. Engine Brake	£32.38 £26.98
8	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
9	MO112292100/0 Available to backorder	Hexagon Nut M6	£1.39 £1.16
