HP46 - 2013-2014 - 299174643/M13 - Mountfield Rotary Mower Deck Diagram

Description

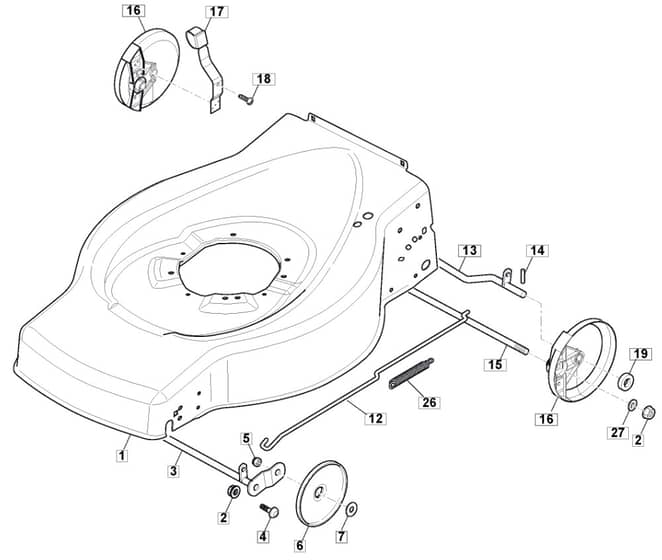

Mountfield HP46 Parts Diagram

Product Name - HP46

Model Year - 2013-2014

Model Type - ESL 464

Art.N - 299174643/M13

Engine Model - RV100

	Part No.	Details
1	MO381004745/0 In stock	Grey Deck	£109.79 £91.49
2	MO122131750/0 In stock	Nut	£1.97 £1.64
3	MO381000153/0 Available to backorder	Front Wheel Axle	£53.50 £44.58
4	MO112760600/1 Available to backorder	Screw	£2.24 £1.87
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
7	MO122671651/0 In stock	Washer To 31-8-2006	£1.97 £1.64
7	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
12	MO122033317/0 Available to backorder	Adjustment Rod	£18.72 £15.60
13	MO381000159/0 Available to backorder	Rear Wheel Axle From 01-9-2006	£24.07 £20.06
14	MO122753001/0 Available to backorder	Pin	£1.63 £1.36
15	MO122033369/0 Available to backorder	Rear Stiffening Axle	£19.79 £16.49
16	MO322600106/1 Available to backorder	Protection	£6.77 £5.64
17	MO381003303/0 Available to backorder	Lever. Height Adjustment	£17.46 £14.55
18	MO112728689/0 In stock	Screw	£1.39 £1.16
19	MO112521370/0 Available to backorder	Washer To 31-8-2006	£1.63 £1.36
19	MO322170622/0 Available to backorder	Spacer From 01-9-2006	£1.39 £1.16
26	MO122446186/0 Available to backorder	Spring Only for 534 Models	£5.34 £4.45
27	MO122675100/0 Available to backorder	Washer D.12.6 X 24 X 0.6	£1.92 £1.60
