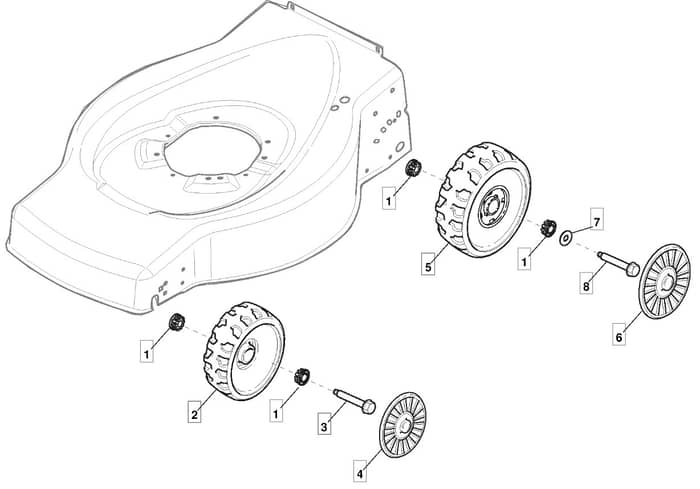

HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Wheels Diagram

Name: HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Wheels Diagram
SKU: hp45_h_299014633_bq_wheels-group
Price: 1.29 GBP
Availability: InStock

Part No. hp45_h_299014633_bq_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield HP45 H Parts Diagram

Product Name - HP45H

Model Year - 2016-2017

Model Type - ESL 464

Art.N - 299014633/BQ

Engine Model - Honda GCV 160

	Part No.	Details
1	MO122034508/0 In stock	Bushing	£1.55 £1.29
2	MO322686091/1 In stock	Wheel	£6.77 £5.64
3	MO122524322/0 In stock	Pin To 31-8-2006	£4.37 £3.64
4	MO322110729/0 In stock	Hub Cap Grey Grey	£2.69 £2.24
5	MO322686092/0 Available to backorder	Wheel Ø 190 From 01-9-2006	£5.92 £4.93
5	MO381007347/0 Available to backorder	Wheel To 31-8-2006	£13.84 £11.53
6	MO322110636/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
7	MO112523050/0 In stock	Washer	£1.57 £1.31
8	MO122524341/0 In stock	Wheel Bolt	£7.50 £6.25
