HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Blade Diagram

Name: HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Blade Diagram
SKU: hp45_h_299014633_bq_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. hp45_h_299014633_bq_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP45 H - 2016-2017 - 299014633/BQ - Mountfield Rotary Mower Blade Diagram

Description

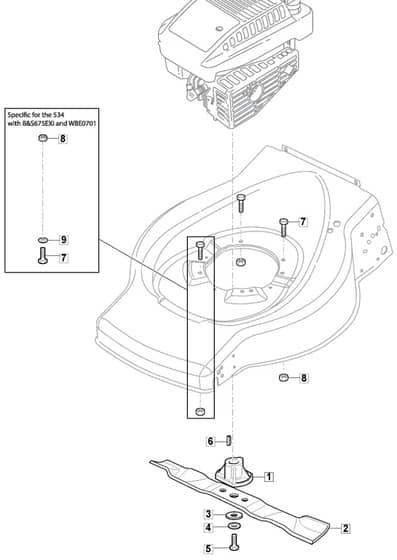

Mountfield HP45 H Parts Diagram

Product Name - HP45H

Model Year - 2016-2017

Model Type - ESL 464

Art.N - 299014633/BQ

Engine Model - Honda GCV 160

	Part No.	Details
1	MO122463020/2 In stock	Hub	£9.17 £7.64
2	MO181004365/3 In stock	Mulching Blade	£12.06 £10.05
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
7	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
8	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
9	MO112521350/0 In stock	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
