HP45 - 2020-2022 - 2L0481048/AMZ - Mountfield Rotary Mower Grass Bag Diagram

Description

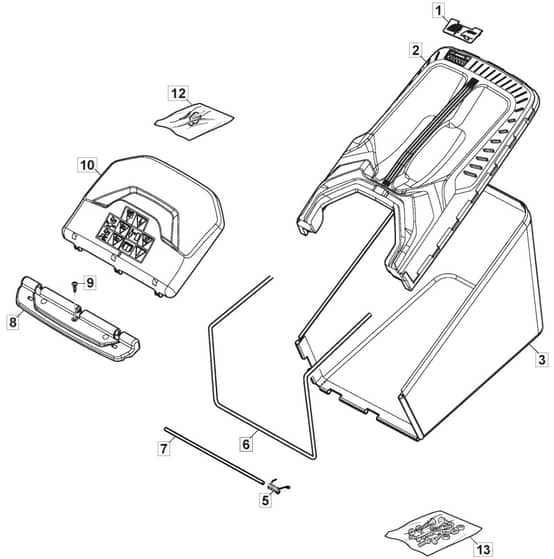

Mountfield HP45 Parts Diagram

Product Name - HP45

Model Year - 2020-2022

Model Type - CP1 484

Art.N - 2L0481048/AMZ

Engine Model - ST120 OHV Autochoke

	Part No.	Details
1	MO322486497/0 Available to backorder	Rear Door	£1.55 £1.29
2	MO322486496/0 In stock	Grass-Box. Upper Part Grey	£30.98 £25.82
3	MO181102422/0 In stock	Black Fabric Box Black without Logo	£42.22 £35.18
5	MO122450479/0 Available to backorder	Spring	£3.38 £2.82
6	MO122608525/2 In stock	Lower Stiffening	£13.12 £10.93
7	MO122517884/0 Available to backorder	Pin	£5.06 £4.22
8	MO322109594/0 Available to backorder	Stone Guard Support. Black Black	£6.05 £5.04
9	MO112728697/0 In stock	Screw	£1.55 £1.29
10	MO322600355/1 Available to backorder	Stone Guard. Black Black	£12.26 £10.22
12	MO381008735/0 In stock	Outfit. Plastic Pin Only Plastic Pin - Plastic Pin is also available on the screw pocket	£2.24 £1.87
