HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Piston Connecting Rod Diagram

Back

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Piston Connecting Rod Diagram

Name: HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Piston Connecting Rod Diagram
SKU: hp425_2l0431038_m19_piston_connecting_rod-group
Price: 1.56 GBP
Availability: InStock

Part No. hp425_2l0431038_m19_piston_connecting_rod-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Piston Connecting Rod Diagram

Description

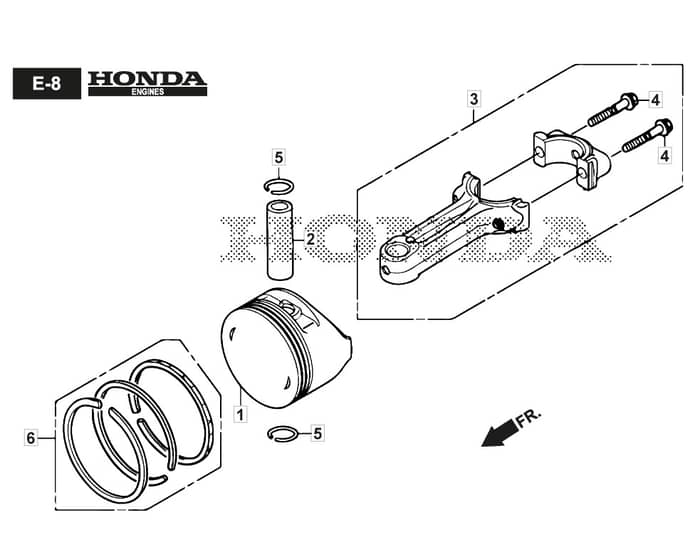

Mountfield HP425 Parts Diagram

Model Year - 2019-2021

Model Type - CP1 434 Q

Art.N - 2L0431038/M19

	Part No.	Details
1	HP13101-Z9P-000 Available to backorder	Piston	£38.40 £32.00
2	HP13111-ZE0-000 Available to backorder	Pin. Piston	£10.57 £8.81
3	HP13200-Z9L-000 Available to backorder	Rod Assy. Connecting	£51.80 £43.17
4	HP90001-Z1L-000 Available to backorder	Bolt. Connecting Rod	£3.89 £3.24
5	HP90551-ZE0-000 Available to backorder	Clip. Piston Pin. 13mm	£1.87 £1.56
6	HP13010-Z9P-003 Available to backorder	Ring Set. Piston	£33.48 £27.90
