HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Exhaust Muffler Diagram

Back

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Exhaust Muffler Diagram

Name: HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Exhaust Muffler Diagram
SKU: hp425_2l0431038_m19_exhaust_muffler-group
Price: 1.81 GBP
Availability: InStock

Part No. hp425_2l0431038_m19_exhaust_muffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP425 - 2019-2021 - 2L0431038/M19 - Mountfield Rotary Mower Exhaust Muffler Diagram

Description

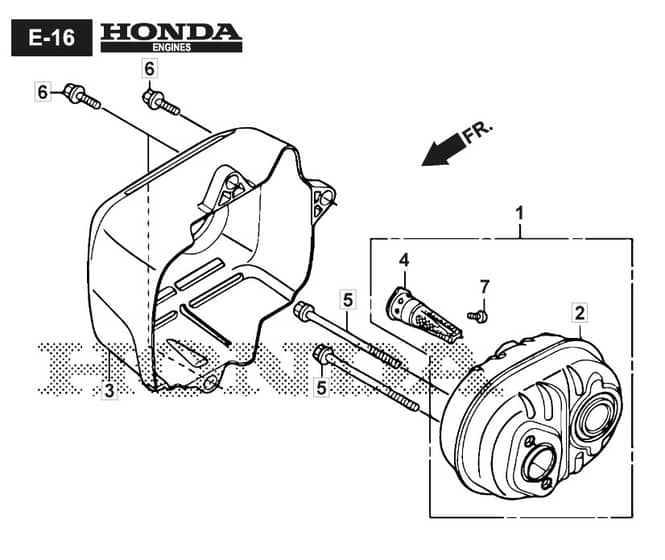

Mountfield HP425 Parts Diagram

Product Name - HP425

Model Year - 2019-2021

Model Type - CP1 434 Q

Art.N - 2L0431038/M19

Engine Model - Honda GCV145 OHV Autochoke

	Part No.	Details
1	HP18310-Z9L-000 Available to backorder	Muffler Comp.	£43.80 £36.50
3	HP18320-Z9L-000 Available to backorder	Protector Comp. Muffler	£28.69 £23.91
5	HP90004-ZL8-000 In stock	Bolt. Flange. 6X79 (Ct200)	£2.17 £1.81
6	HP90018-ZE1-000 Available to backorder	Bolt. Flange. 6X23 (Ct200)	£2.96 £2.47
8	HP18381-ZL8-305 Available to backorder	Gasket. Muffler	£6.64 £5.53
