HP425 - 2014 - 295431038/M14 - Mountfield Rotary Mower Deck Diagram

Description

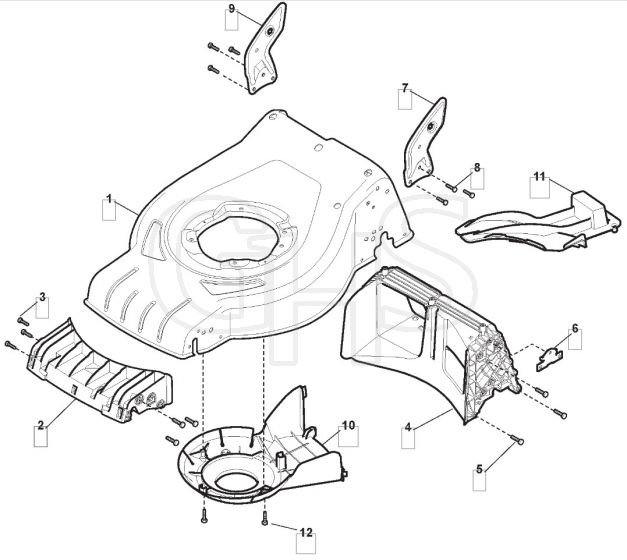

Mountfield HP425 Parts Diagram

Product Name - HP425

Model Year - 2014

Model Type - CR 434

Art.N - 295431038/M14

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381004932/0 Available to backorder	Grey Deck	£117.54 £97.95
2	MO322108300/2 Available to backorder	Front Conveyor Assy	£11.34 £9.45
4	MO322108392/0 Available to backorder	Rear Conveyor Assy	£20.40 £17.00
5	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
6	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
7	MO381005139/0 Available to backorder	Left Bracket	£6.62 £5.52
8	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
9	MO381005137/0 Available to backorder	Right Bracket	£6.34 £5.28
10	MO322060241/1 In stock	Belt Protection	£8.74 £7.28
11	MO322140240/1 Available to backorder	Mulching Deflector	£11.12 £9.27
12	MO112728903/0 In stock	Screw	£1.40 £1.17
