HP425 - 2012-2013 - 295431038/M12 - Mountfield Rotary Mower Height Adjusting Diagram

Name: HP425 - 2012-2013 - 295431038/M12 - Mountfield Rotary Mower Height Adjusting Diagram
SKU: hp425_295431038_m12_height_adjusting-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP425 - 2012-2013 - 295431038/M12 - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield HP425 Parts Diagram

Product Name - HP425

Model Year - 2012-2013

Model Type - CR 434

Art.N - 295431038/M12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322545189/0 Available to backorder	Plate	£1.55 £1.29

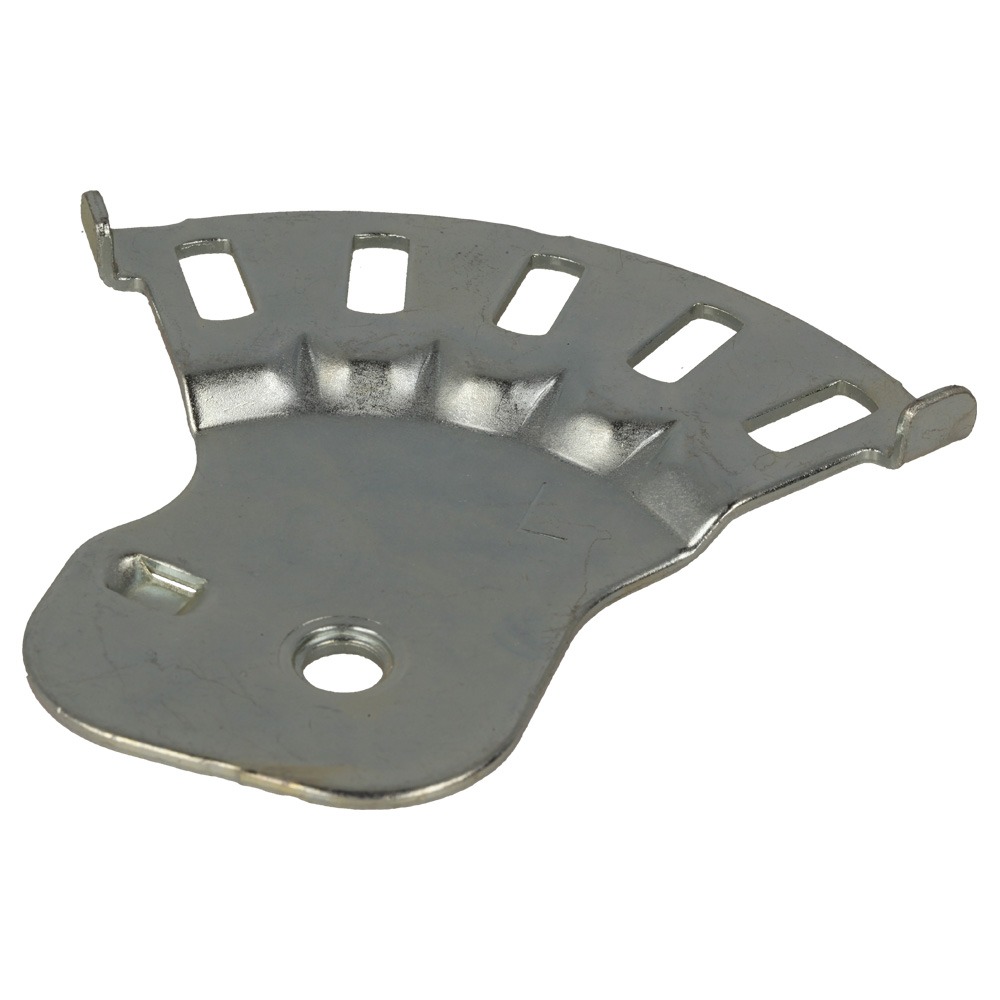

2	MO322735597/1 Available to backorder	Sector	£2.68 £2.23

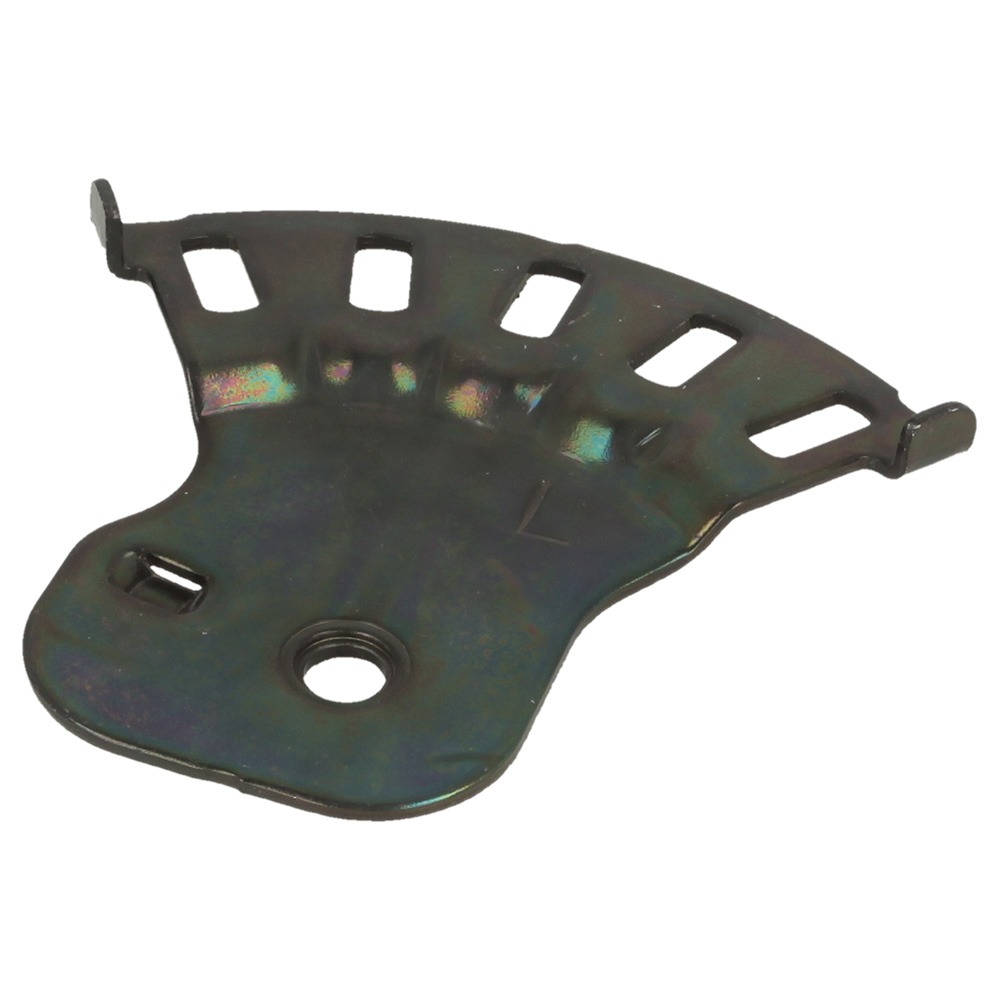

2	MO322735611/0 Available to backorder	Sector. Height Adjustment From S.N 20BA2WBH058856	£2.68 £2.23
3	MO381005265/0 Available to backorder	Wheel Support From S.N 20BA2WBH056550	£11.40 £9.50

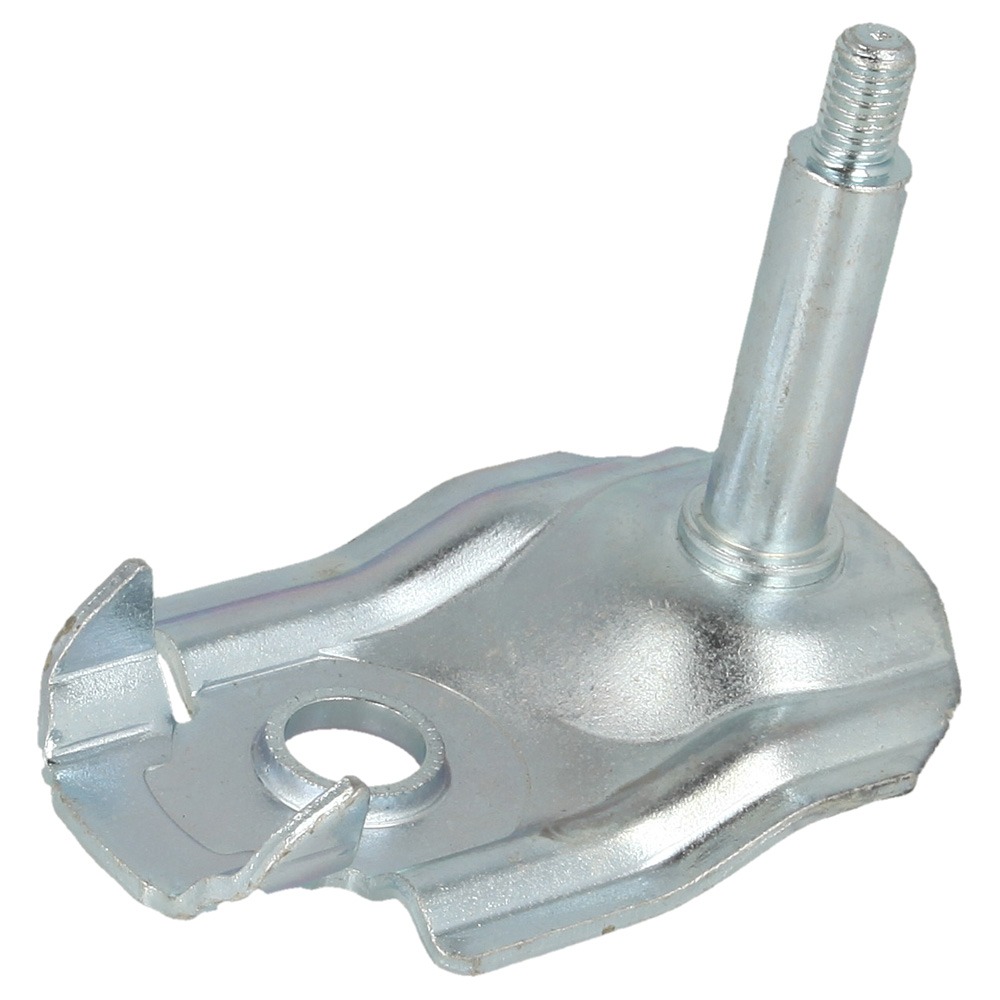

3	MO381005253/0 Available to backorder	Wheel Support From S.N 20AA2WBH020538 To S.N 20BA2WBH056549	£11.12 £9.27
3	MO381005159/0 Available to backorder	Wheel Support	£10.16 £8.47

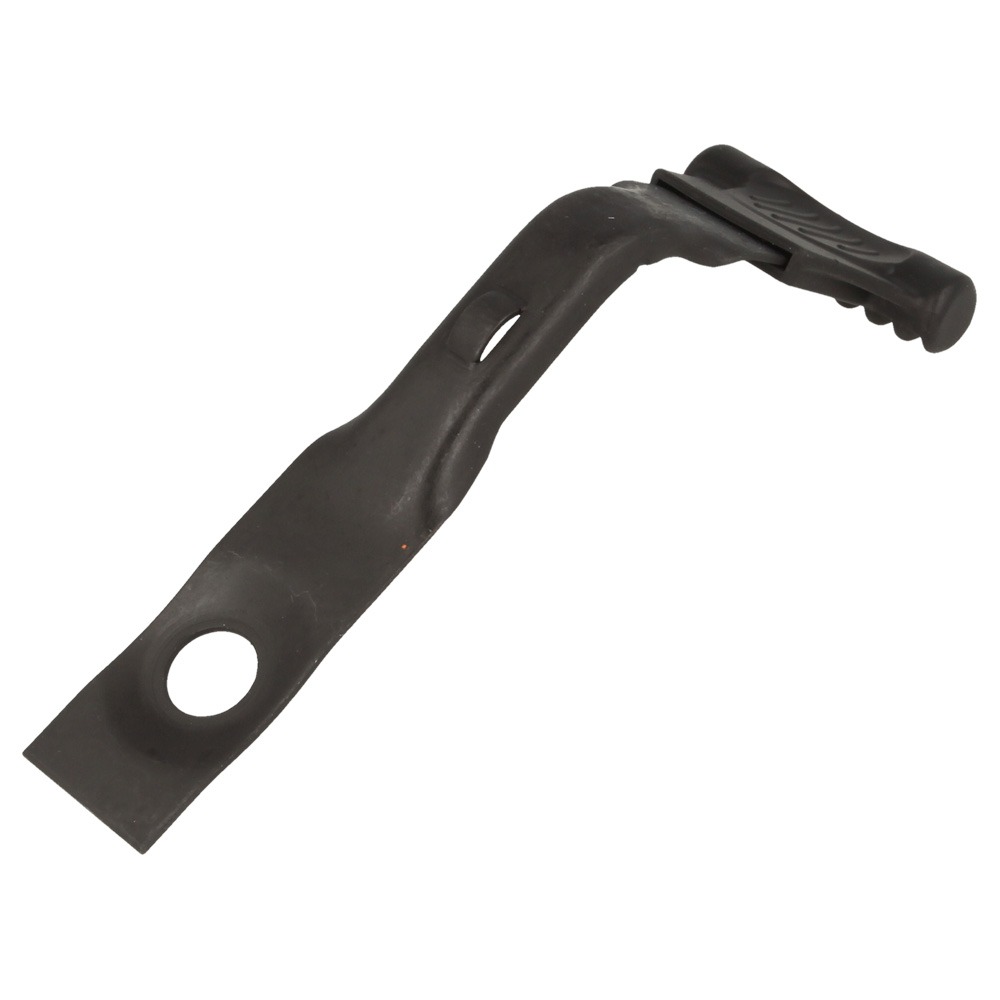

4	MO381003354/0 Available to backorder	Lever. Height Adjustment with Standard Black Knob	£6.90 £5.75
5	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
6	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
7	MO112155000/0 In stock	Nut	£1.55 £1.29
8	MO322545211/0 Available to backorder	Plate	£2.40 £2.00
9	MO322735595/1 Available to backorder	Sector	£2.68 £2.23
9	MO322735609/0 Available to backorder	Sector. Height Adjustment From S.N 20BA2WBH064330	£2.68 £2.23
10	MO322600247/0 Available to backorder	Protection. Wheel As Optional	£8.18 £6.82
