HP42 H - 2016-2017 - 295441038/BQ - Mountfield Rotary Mower Upper Handle Diagram

Name: HP42 H - 2016-2017 - 295441038/BQ - Mountfield Rotary Mower Upper Handle Diagram
SKU: hp42_h_295441038_bq_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. hp42_h_295441038_bq_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP42 H - 2016-2017 - 295441038/BQ - Mountfield Rotary Mower Upper Handle Diagram

Description

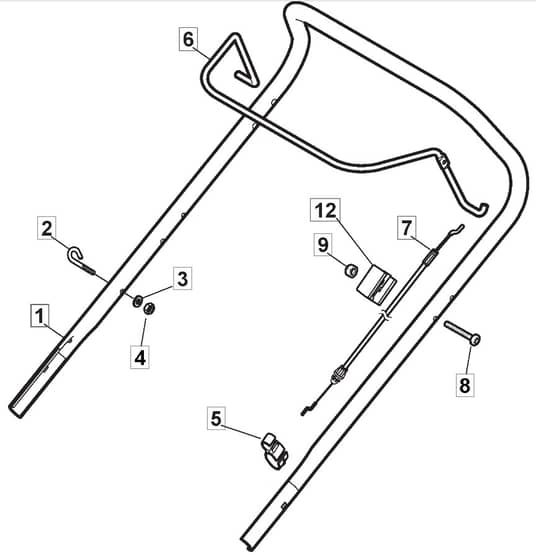

Mountfield HP42 H Parts Diagram

Product Name - HP42H

Model Year - 2016-2017

Model Type - CS 434

Art.N - 295441038/BQ

Engine Model - Honda GCV 160 Autochoke

	Part No.	Details
1	MO381006787/1 In stock	Handle	£39.42 £32.85
1	MO381006745/3 In stock	Handle	£39.42 £32.85
2	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181003363/1 In stock	Lever	£14.93 £12.44
7	MO181030069/1 Available to backorder	Cable	£13.51 £11.26
8	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
9	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO322551685/0 In stock	Cable Holder Block D	£7.52 £6.27
