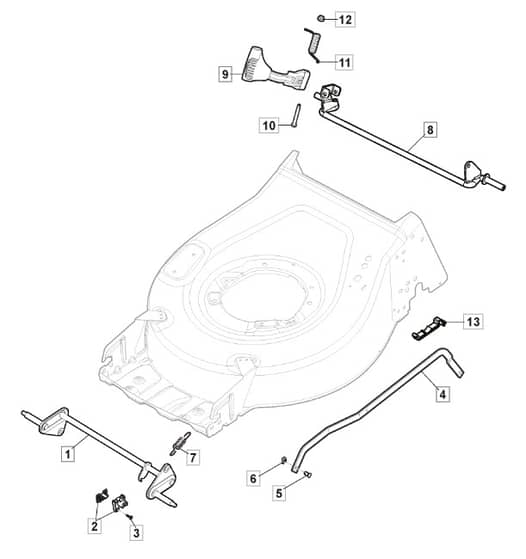

HP42 - 2019-2022 - 2L0431048/M19 - Mountfield Height Adjusting Diagram

HP42 - 2019-2022 - 2L0431048/M19 - Mountfield Height Adjusting Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP42 - 2019-2022 - 2L0431048/M19 - Mountfield Height Adjusting Diagram

HP42 - 2019-2022 - 2L0431048/M19 - Mountfield Height Adjusting Diagram

Description

Mountfield HP42 Parts Diagram

Model Year - 2019-2022

Model Type - CP1 434

Art.N - 2L0431048/M19

Engine Model - ST 120 OHV Autochoke

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		MO381302937/0	Axle. Front Wheels To S.N 20BA2WBH076122	Out of stock	£26.69 £22.24
	1		MO381302937/1	Axle. Front Wheels From S.N 20BA2WBH076123	Out of stock	£62.30 £51.92
	2		MO322785305/1	Support	In stock	£2.58 £2.15
	3		MO112728697/0	Screw	Out of stock	£1.63 £1.36
	4		MO322869731/1	Rod	Out of stock	£17.47 £14.56
	5		MO122519823/0	Pin	In stock	£2.17 £1.81
	6		MO112436050/0	Plate	In stock	£1.75 £1.46
	7		MO122450494/0	Spring	Out of stock	£4.60 £3.83
	8		MO381302855/1	Rear Wheel Axle To S.N 20BA2WBH060866	Out of stock	£42.01 £35.01
	8		MO381302855/2	Rear Wheel Axle From S.N 20BA2WBH060867	Out of stock	£44.70 £37.25
	9		MO381003356/1	Wheels Rear Adj. Lever From S.N 20BA2WBH076281	Out of stock	£5.28 £4.40
	10		MO122534131/0	Pin	Out of stock	£1.49 £1.24
	11		MO122446192/0	Spring	Out of stock	£2.04 £1.70
	12		MO112154510/0	Nut	In stock	£1.63 £1.36
	13		MO322785500/0	Support	In stock	£1.75 £1.46

Description

Mountfield HP42 Parts Diagram

Model Year - 2019-2022

Model Type - CP1 434

Art.N - 2L0431048/M19

Engine Model - ST 120 OHV Autochoke
