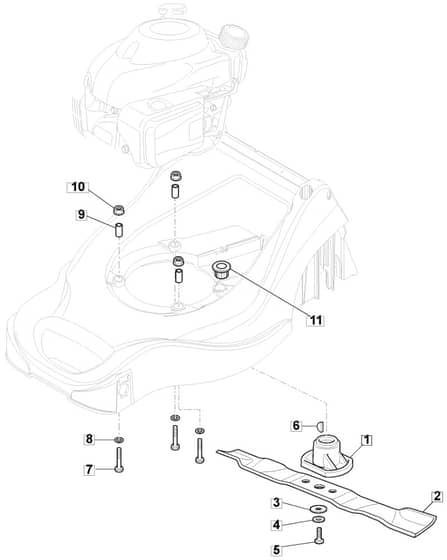

HP414 - 2020 - 297411043/M20 - Mountfield Rotary Mower Blade Diagram

Name: HP414 - 2020 - 297411043/M20 - Mountfield Rotary Mower Blade Diagram
SKU: hp414_297411043_m20_blade-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP414 - 2020 - 297411043/M20 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield HP414 Parts Diagram

Product Name - HP414

Model Year - 2020

Model Type - EP 414

Art.N - 297411043/M20

Engine Model - ST120 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122463012/4 In stock	Hub	£8.02 £6.68
2	MO181004360/3 In stock	Mulching Blade	£12.26 £10.22
3	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.82 £1.52
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
8	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
9	MO122167842/0 Available to backorder	Spacer From 01-9-2010	£3.38 £2.82
10	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
11	MO122040265/0 Available to backorder	Bushing	£1.40 £1.17
