HP414 - 2011-2016 - 297411043/BQ - Mountfield Rotary Mower Lower Handle Diagram

Description

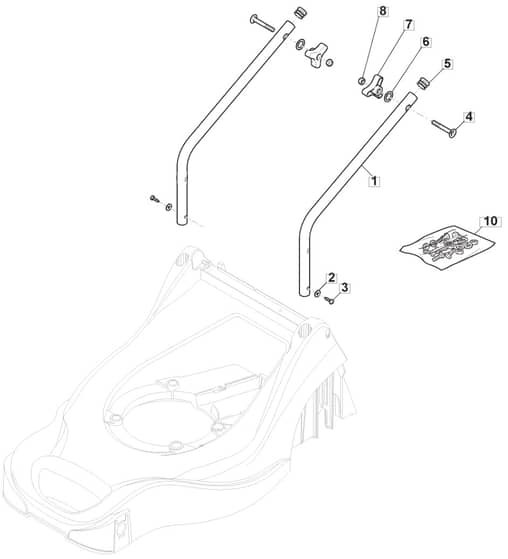

Mountfield HP414 Parts Diagram

Product Name - HP414

Model Year - 2011-2016

Model Type - EP 414

Art.N - 297411043/BQ

Engine Model - RV100

	Part No.	Details
1	MO381006769/0 In stock	Right.Left Lower Handle	£9.17 £7.64
2	MO112523020/0 In stock	Washer	£1.55 £1.29
3	MO112728450/0 In stock	Screw	£1.55 £1.29
4	MO112819110/0 In stock	Screw	£1.82 £1.52
5	MO118566110/0 Available to backorder	Push Rod	£1.55 £1.29
6	MO122671651/0 In stock	Washer	£1.97 £1.64
7	MO122399900/0 In stock	Black Knob	£1.55 £1.29
8	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO381008687/0 In stock	Outfit. Screws	£8.29 £6.91
