HP414 - 2011-2016 - 297411043/BQ - Mountfield Rotary Mower Deck Diagram

Name: HP414 - 2011-2016 - 297411043/BQ - Mountfield Rotary Mower Deck Diagram
SKU: hp414_297411043_bq_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. hp414_297411043_bq_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

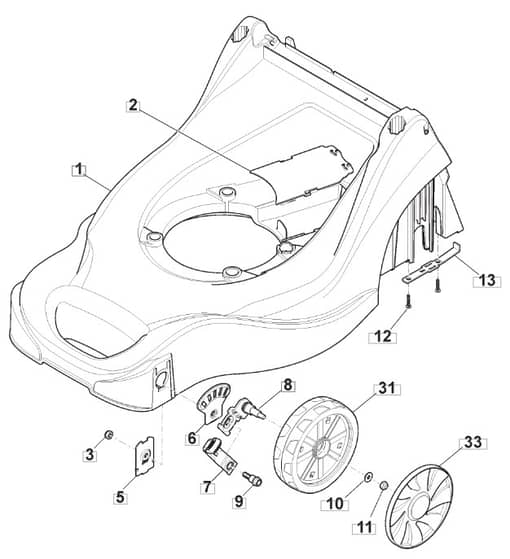

HP414 - 2011-2016 - 297411043/BQ - Mountfield Rotary Mower Deck Diagram

Description

Mountfield HP414 Parts Diagram

Product Name - HP414

Model Year - 2011-2016

Model Type - EP 414

Art.N - 297411043/BQ

Engine Model - RV100

	Part No.	Details
1	MO322066750/0 Available to backorder	Red Deck	£77.44 £64.53
1	MO322066752/0 Available to backorder	Red Deck Dark Red	£76.72 £63.93
2	MO322060245/0 Available to backorder	Belt Protection	£3.25 £2.71
3	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
5	MO322785361/0 Available to backorder	Support. Wheel	£2.24 £1.87
6	MO322735599/0 Available to backorder	Sector. Height Adjustment	£4.08 £3.40
7	MO381003352/0 Available to backorder	Lever. Height Adjustment	£7.31 £6.09
8	MO381005163/0 Available to backorder	Wheel Support	£7.02 £5.85
9	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
10	MO112521350/0 In stock	Washer	£1.55 £1.29
11	MO112155000/0 In stock	Nut	£1.55 £1.29
12	MO112728690/0 Available to backorder	Screw	£1.63 £1.36
13	MO322608563/0 Available to backorder	Deck Rear Stiffening	£2.69 £2.24
31	MO322686100/0 In stock	Wheel Ø 175	£6.32 £5.27
33	MO322110642/0 In stock	Hub Cap Grey	£2.24 £1.87
