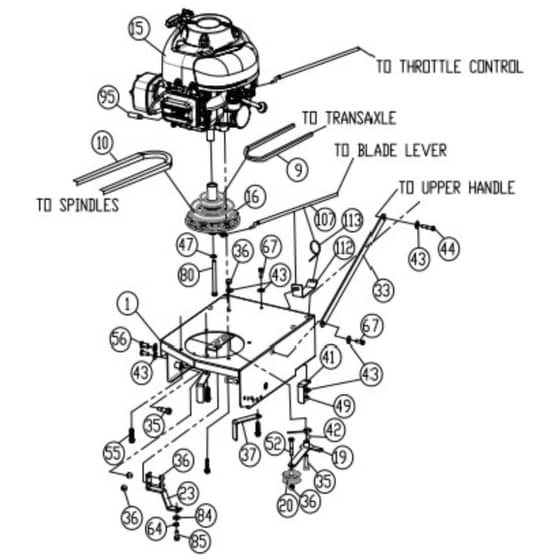

Billy Goat HP3400 - Mower Main Diagram

Billy Goat HP3400 - Mower Main Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Billy Goat HP3400 - Mower Main Diagram

Billy Goat HP3400 - Mower Main Diagram

Description

HP3400 Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	20		BG521121 Available to backorder	Pulley Idler Arm Hp		£14.28 £11.90
	35		BG500114 Available to backorder	Bolt Shoulder 1/2" X 1"		£8.72 £7.27
	36		BG8160003 Available to backorder	Nut Lock 3/8" - 16		£1.20 £1.00
	43		BG8171003 Available to backorder	Washer 5/16 Flat Zp		£0.78 £0.65
	44		BG8041031 Available to backorder	Screwcap 5/16-18 X 1/4" Hex Zp		£0.97 £0.81
	47		BG8177013 Available to backorder	Washer Lock 7/16" S/T Med		£0.78 £0.65
	49		BG8160002 Available to backorder	Nut Lock 5/16-18 Hex Zp		£0.97 £0.81
	55		BG890408 Available to backorder	Screw 3/8" X 1 1/2" Tcs		£3.12 £2.60
	56		BG8041050 Available to backorder	Screwcap 3/8"-16 X 1" Hcs Zp		£1.20 £1.00
	64		BG8181007 Available to backorder	Washer Lock 1/4" External Tooth		£0.78 £0.65
	67		BG8041028 Available to backorder	Screwcap 5/16-18 X 1" Hex Zp		£0.97 £0.81
	84		BG8172019 Available to backorder	Washer 3/8 Sae		£0.78 £0.65
	85		BG8041002 Available to backorder	Screwcap 1/4" - 20 X 1/2" Hcs Zp		£0.97 £0.81
	113		BG900407 Available to backorder	Ty Wrap		£0.78 £0.65
