HP185 - 2019-2022 - 2L0481023/MC - Mountfield Rotary Mower Height Adjusting Diagram

Description

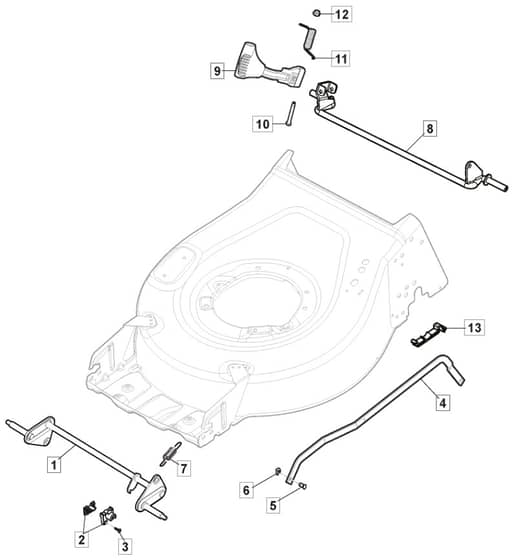

Mountfield HP185 Parts Diagram

Product Name - HP185

Model Year - 2019-2022

Model Type - CP1 484

Art.N - 2L0481023/MC

Engine Model - Briggs & Stratton 300 Series

	Part No.	Details
1	MO381302935/1 Available to backorder	Axle	£29.57 £24.64
2	MO322785305/1 In stock	Support	£2.69 £2.24
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869733/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH048299	£17.46 £14.55
4	MO322869733/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH048300	£15.62 £13.02
5	MO122519823/0 In stock	Pin	£2.24 £1.87
6	MO112436050/0 In stock	Plate	£1.84 £1.53
7	MO122450494/0 In stock	Spring	£4.78 £3.98
8	MO381302855/1 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH060866	£46.48 £38.73
8	MO381302855/2 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH060867	£46.48 £38.73
9	MO381003356/1 In stock	Wheels Rear Adj. Lever From S.N 20BA2WBH076281	£5.76 £4.80
10	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
11	MO122446192/0 Available to backorder	Spring	£2.22 £1.85
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO322785500/0 In stock	Rear Axle Support	£1.84 £1.53
