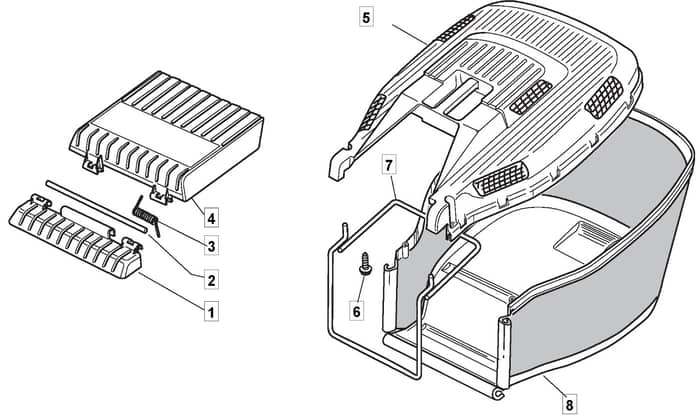

HP180 - 2015-2018 - 299174623/M15 - Mountfield Rotary Mower Grass Bag Diagram

Name: HP180 - 2015-2018 - 299174623/M15 - Mountfield Rotary Mower Grass Bag Diagram
SKU: hp180_299174623_m15_grass_bag-group
Price: 1.33 GBP
Availability: InStock

Part No. hp180_299174623_m15_grass_bag-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP180 - 2015-2018 - 299174623/M15 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield HP180 Parts Diagram

Product Name - HP180

Model Year - 2015-2018

Model Type - ES 464

Art.N - 299174623/M15

Engine Model - Briggs & Stratton 300 Series

	Part No.	Details
1	MO322785136/1 Available to backorder	Stone Guard Support	£3.23 £2.69
2	MO122517858/0 Available to backorder	Pin	£5.34 £4.45
3	MO122450431/0 Available to backorder	Spring	£5.02 £4.18
4	MO322600099/2 Available to backorder	Stone Guard	£4.88 £4.07
5	MO322486122/0 In stock	Grasscatcher Upper Part Black	£26.75 £22.29
6	MO112728706/0 In stock	Screw	£1.60 £1.33
7	MO181006419/0 Available to backorder	Fabric Box Frame	£21.54 £17.95
8	MO181002229/1 In stock	Grassbag [Black]	£47.87 £39.89
