HP164 - 2013-2019 - 297411048/SF - Mountfield Rotary Mower Upper Handle Diagram

Name: HP164 - 2013-2019 - 297411048/SF - Mountfield Rotary Mower Upper Handle Diagram
SKU: hp164_297411048_sf_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. hp164_297411048_sf_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HP164 - 2013-2019 - 297411048/SF - Mountfield Rotary Mower Upper Handle Diagram

Description

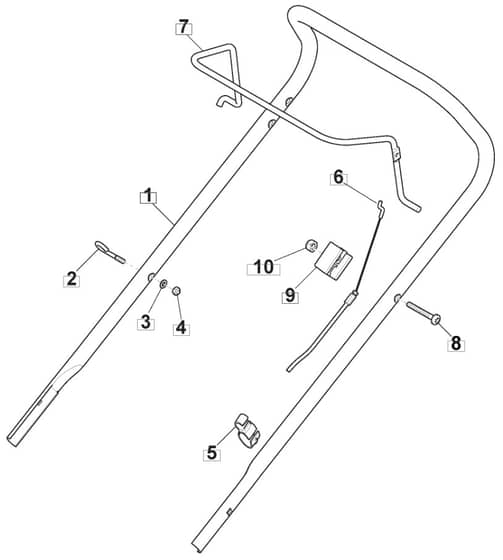

Mountfield HP164 Parts Diagram

Product Name - HP164

Model Year - 2013-2019

Model Type - EP 414

Art.N - 297411048/SF

	Part No.	Details
1	MO381006787/1 In stock	Handle	£39.42 £32.85
2	MO122430313/0 In stock	Guide Spring	£3.92 £3.27
3	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
5	MO118390020/0 In stock	Conduit Clip	£1.84 £1.53
6	MO181030079/0 In stock	Cable. Thread Engine Brake	£12.90 £10.75
7	MO181003363/1 In stock	Lever	£14.93 £12.44
8	MO112727783/0 Available to backorder	Screw	£1.70 £1.42
9	MO322551685/0 In stock	Cable Holder Ø22	£7.52 £6.27
10	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
