HP 48 EL - 2008 - 294484068/BQ - Mountfield Rotary Mower Blade Diagram

Description

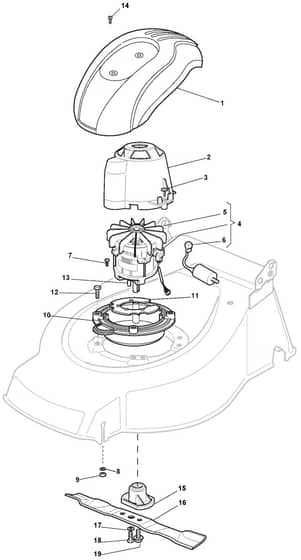

Mountfield HP 48 EL Parts Diagram

Model Year - 2008

Model Type - TD 480

Art.N - 294484068/BQ

	Part No.	Details
1	MO122055065/0 Available to backorder	Ciao Cover Black	£12.67 £10.56
2	MO322785061/1 Available to backorder	Support	£5.92 £4.93
3	MO112728710/0 Available to backorder	Screw	£1.33 £1.11
5	MO118740054/0 Available to backorder	Fan Motor Atb ATB	£9.65 £8.04
6	MO118222038/0 Available to backorder	Condenser (RST - HLT 1600W) To 31-8-2007	£30.98 £25.82
6	MO118222045/0 Available to backorder	Condenser 16 Μf (Atb - 1600W) From 01-9-2001	£19.28 £16.07
7	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
9	MO112293200/0 In stock	Nut	£1.55 £1.29
10	MO322207211/4 Available to backorder	Electrical Motor Flange From 01-9-2007	£6.61 £5.51
11	MO322720360/2 Available to backorder	Ventilation Screen From 01-9-2007	£3.25 £2.71
12	MO112793701/0 In stock	Screw From 01-9-2013	£1.55 £1.29
13	MO112139440/0 Available to backorder	Key	£1.97 £1.64
14	MO112728722/0 Available to backorder	Screw	£1.55 £1.29
15	MO322463186/3 Available to backorder	Blade Hub From 01-9-2007	£8.08 £6.73
16	MO181004397/0 Available to backorder	Blade Winged	£22.88 £19.07
16	MO181004460/0 In stock	Mulching Blade From 01-9-2015	£14.14 £11.78
16	MO181004346/3 In stock	Left Mulching. Blade From 01-9-2001 To 31-8-2015	£12.72 £10.60
17	MO112583500/0 In stock	Grower	£1.55 £1.29
18	MO112793101/0 In stock	Screw	£1.55 £1.29
19	MO381004352/1 In stock	Blade Bolt M9	£4.08 £3.40
