Honda UMK425E2-HAJF-UEET - Handle Pipe Diagram

Description

Honda UMK425E2-HAJF-UEET Brushcutter Parts Diagram

	Part No.	Details
1	HP17850-VL6-P31 Available to backorder	Throttle Lever Assy	£87.36 £72.80

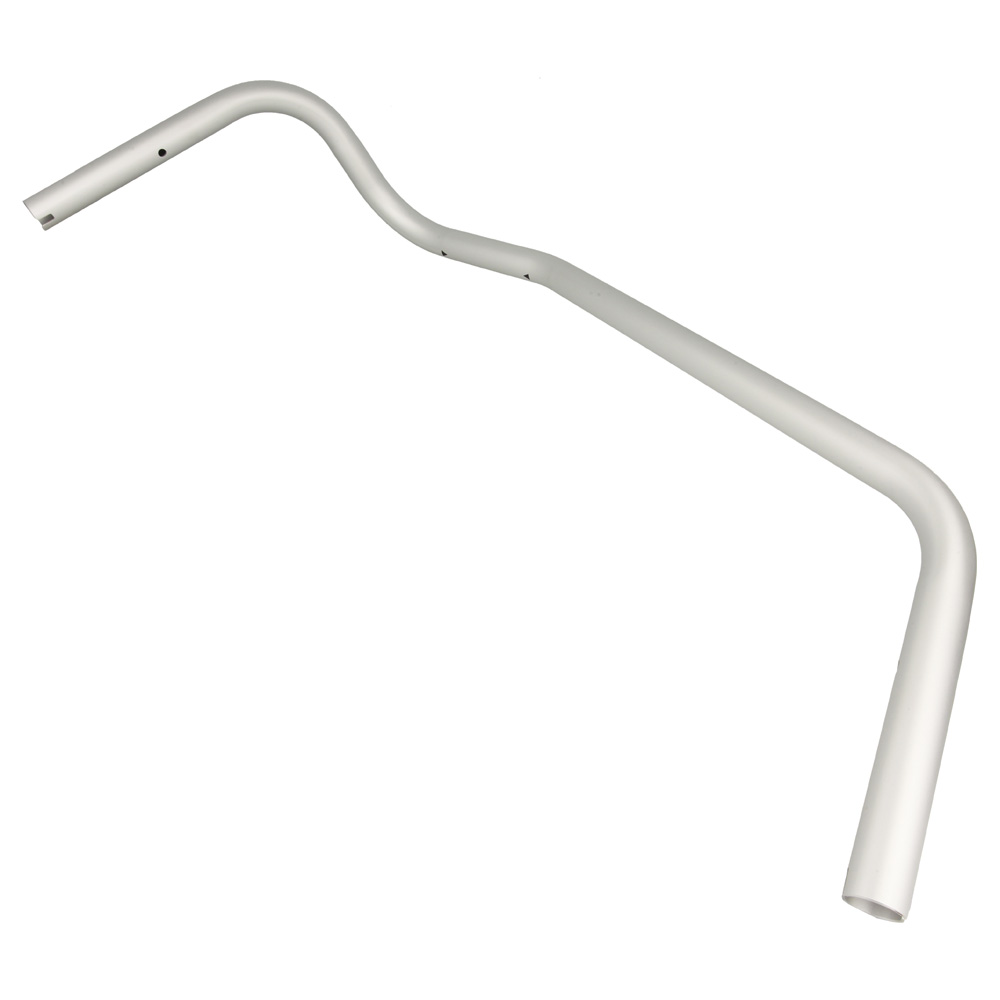

2	HP53111-VL6-P31 Available to backorder	Cow Horn Handle Bar	£79.48 £66.23
3	HP53136-VL6-P31 Available to backorder	Handle Holder	£22.60 £18.83

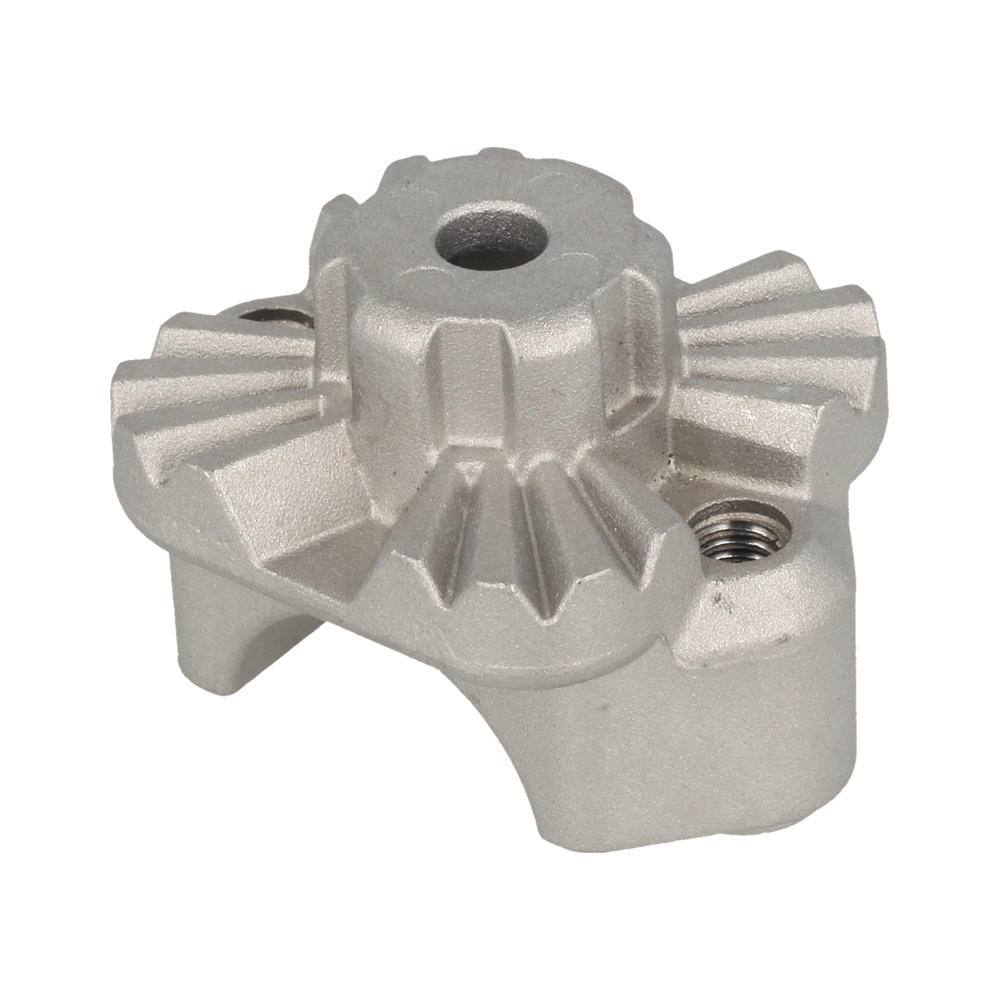

4	HP53137-VL6-P31 Available to backorder	Handle Holder	£41.46 £34.55
5	HP53138-VL6-P31 Available to backorder	Handle Holder	£28.93 £24.11

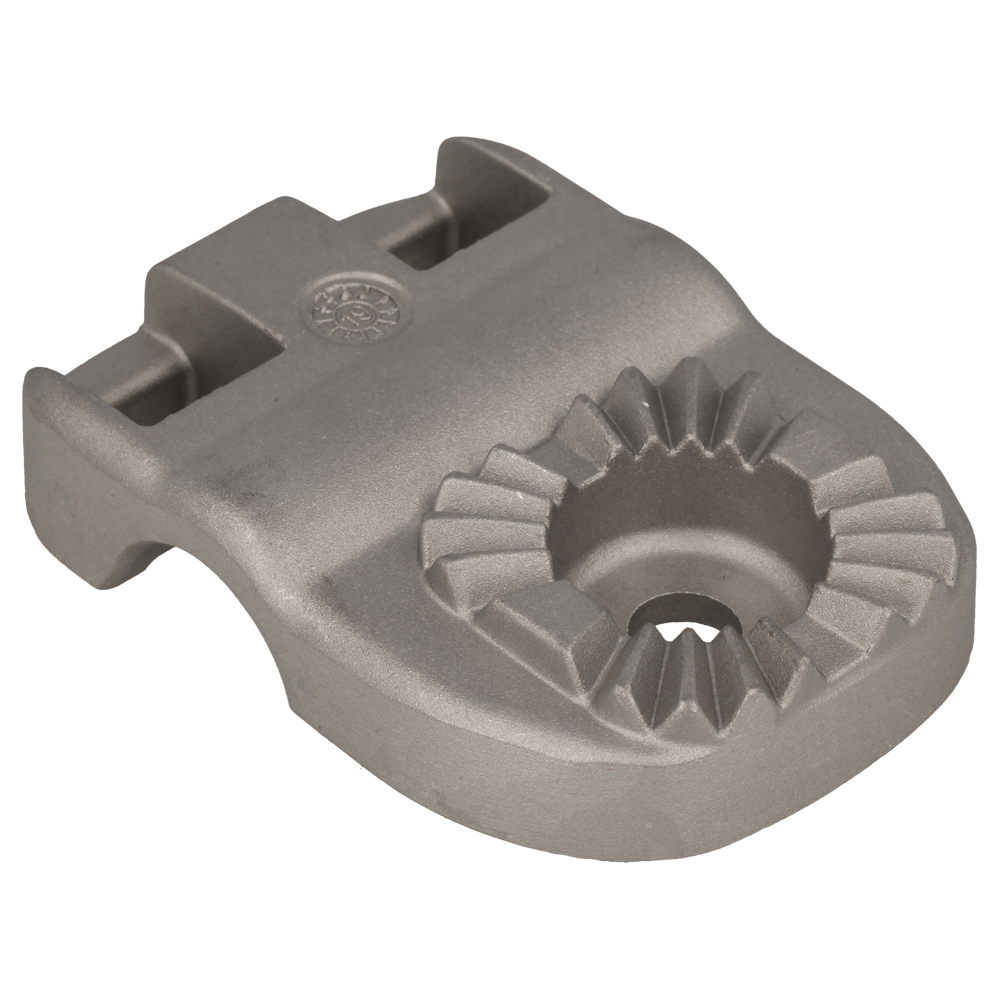

6	HP53139-VL6-P31 Available to backorder	Handle Holder	£26.88 £22.40
7	HP53160-VL6-P31 Available to backorder	Grip Assy	£25.20 £21.00
8	HP90101-VL6-P31 Available to backorder	Torx Bolt 5 X 10	£5.12 £4.27

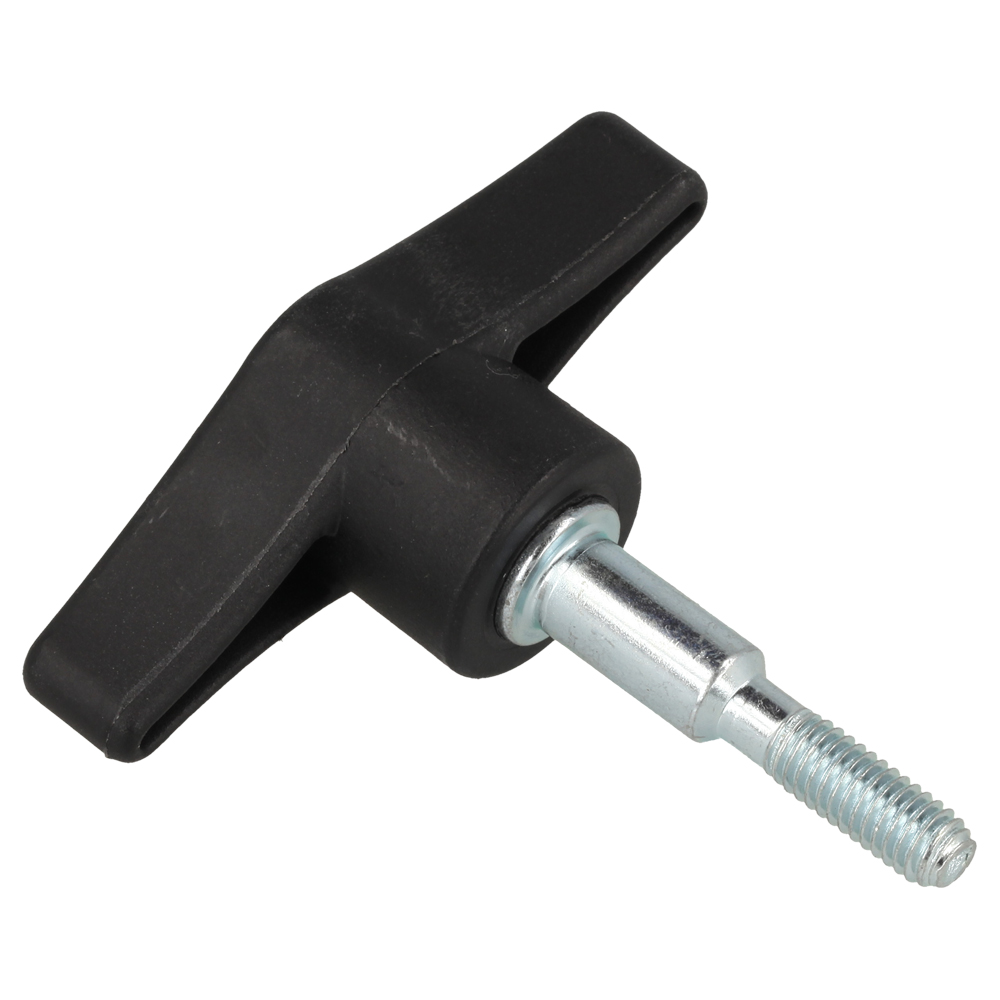

9	HP90110-VL6-P31 Available to backorder	Knob Bolt	£14.24 £11.87
10	HP90114-VL6-P31 Available to backorder	Torx Bolt & Washer 6 X 26	£5.78 £4.82
11	HP90303-VL6-P31 Available to backorder	Hex Nut 6 X 15	£7.18 £5.98
12	HP90501-VJ5-003 Available to backorder	Washer	£2.17 £1.81
13	HP90501-VL6-P31 Available to backorder	Plain Washer 8Mm	£5.26 £4.38
14	HP90502-VL6-P31 Available to backorder	Conical Spring Washer	£5.26 £4.38
15	HP93500-050300G Available to backorder	Screw	£1.50 £1.25
16	HP94002-050-700S Available to backorder	Nut	£3.22 £2.68
