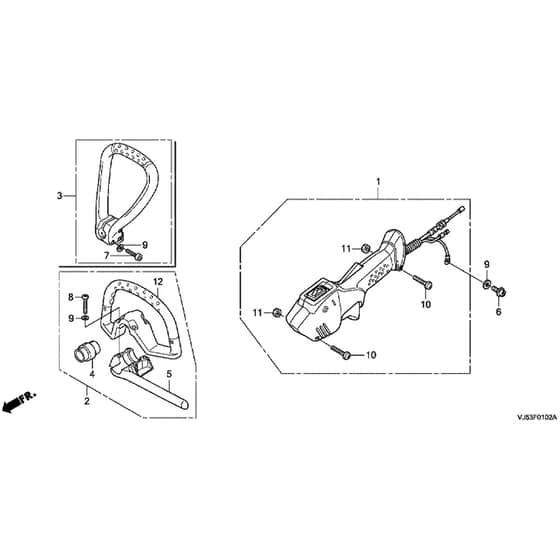

Honda UMK425E2-HAHF-LEET - Loop Handle Diagram

Description

Honda UMK425E2-HAHF-LEET Brushcutter Parts Diagram

	Part No.	Details

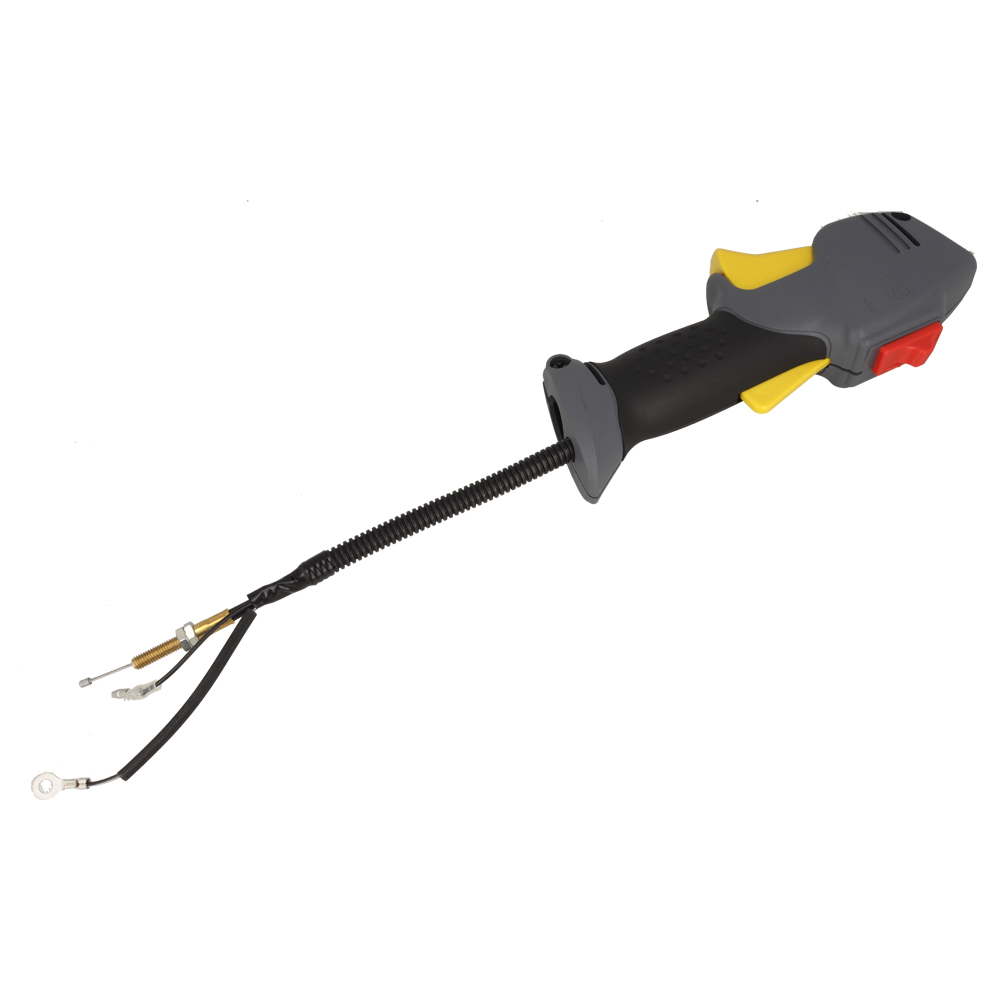

1	HP17850-VL6-P42 Available to backorder	Throttle Lever Assy	£99.29 £82.74
2	HP53100-VL6-P41 Available to backorder	Loop Handle Assy	£122.84 £102.37
4	HP53103-VJ6-P41 Available to backorder	Loop Handle Rubber	£12.67 £10.56
5	HP53122-VL6-P41 Available to backorder	Loop Handle Bar	£32.82 £27.35
6	HP90101-VL6-P31 Available to backorder	Torx Bolt 5 X 10	£5.12 £4.27
8	HP90107-VL6-P31 Available to backorder	Bolt	£6.07 £5.06
9	HP90501-VJ5-003 Available to backorder	Washer	£2.17 £1.81
10	HP93500-05020-0G Available to backorder	Screw	£0.16 £0.13
11	HP94002-050-700S Available to backorder	Nut	£3.22 £2.68
12	HP53101-VL6-P41 Available to backorder	Loop Handle	£82.58 £68.82
