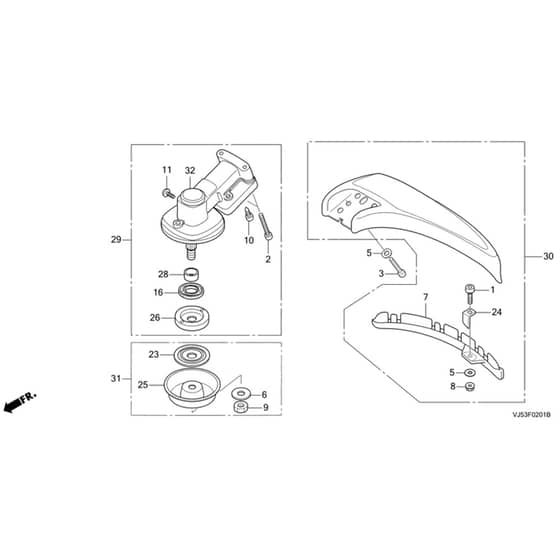

Honda UMK425E-UEE - Gear Case Diagram

Description

Honda UMK425E-UEE Brushcutter Parts Diagram

	Part No.	Details
1	HP80009-VJ5-003 Available to backorder	Socket Head Bolt 5 X 20	£1.72 £1.43
2	HP80011-VJ5-003 Available to backorder	Socket Head Bolt 5 X 30	£1.72 £1.43
3	HP80012-VJ5-003 Available to backorder	Socket Head Bolt 5 X 25	£1.72 £1.43
5	HP80018-VJ5-003 Available to backorder	Washer 5.5 X 15 X 1.5	£0.49 £0.41
6	HP80020-VJ5-003 Available to backorder	Spring Washer 10.2 X 23 X 1	£1.49 £1.24
7	HP80025-VJ5-003 Available to backorder	Deflector Extension	£8.24 £6.87
8	HP80029-VJ5-003 In stock	Lock Nut 5Mm	Was £0.79 £0.66 Special Price £0.66 £0.55
9	HP80031-VJ5-003 Available to backorder	Lock Nut 10Mm	£5.39 £4.49
10	HP80032-VJ5-003 Available to backorder	Special Bolt 5 X 11.5	£4.80 £4.00
11	HP80033-VJ5-003 Available to backorder	Grease Cap	£3.96 £3.30
16	HP80041-VJ5-003 Available to backorder	Ring 18 X 28 X 7	£9.98 £8.32
23	HP80053-VJ5-003 Available to backorder	Blade Holder	£18.18 £15.15
24	HP80057-VJ5-003 In stock	Line Cutter Plate	£5.64 £4.70
25	HP80058-VJ5-003 Available to backorder	Nut Cover	£20.17 £16.81
26	HP80060-VJ5-003 Available to backorder	Blade Holder	£27.72 £23.10
28	HP80070-VJ5-003 Available to backorder	Gear Case Collar	£28.42 £23.68
29	HP80088-VJ5-013 Available to backorder	Gear Case Assy	£301.96 £251.63
30	HP80089-VJ5-013 Available to backorder	Grass Deflector Assy	£44.71 £37.26
31	HP06812-VJ5-000HE Available to backorder	Adapter Kit	£26.42 £22.02
32	HP80117-VJ5-003 Out of stock	Gear Case Sub Assy	£275.28 £229.40
