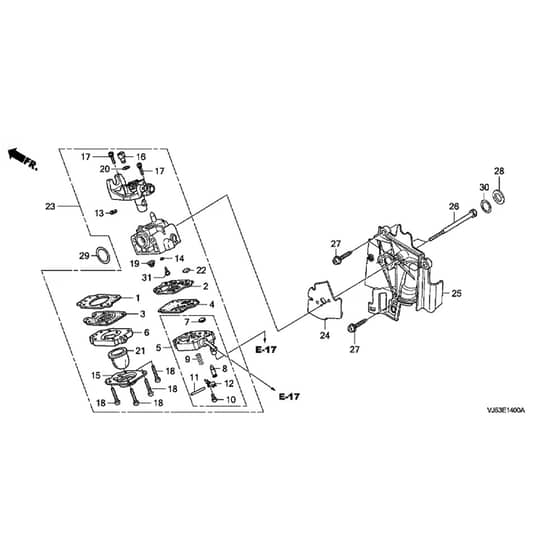

Honda UMK425E-L3E Brushcutter Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-ZM3-004 Available to backorder	Diaphragm Gasket	£3.67 £3.06
2	HP16011-Z0H-003 Available to backorder	Pump Gasket	£4.26 £3.55
3	HP16013-Z0H-003 Available to backorder	Metering Diaphragm	£28.19 £23.49
4	HP16014-ZM3-004 Available to backorder	Pump Diaphragm	£5.11 £4.26
5	HP16015-Z0H-013 Available to backorder	Primer Body Assy	£36.53 £30.44
6	HP16017-ZM3-004 Available to backorder	Primer Body	£13.72 £11.43
7	HP16018-ZM3-802 Available to backorder	Screen Inlet	£3.38 £2.82
8	HP16019-ZM3-004 Available to backorder	Inlet Needle Valve	£4.70 £3.92
9	HP16020-ZM3-004 Available to backorder	Spring	£2.30 £1.92
10	HP16021-ZM3-004 Available to backorder	Pin	£4.52 £3.77
11	HP16022-ZM3-014 Available to backorder	Pin	£2.42 £2.02
12	HP16023-ZM3-004 Available to backorder	Metering Lever	£3.06 £2.55
13	HP16024-Z0H-003 Available to backorder	Retaining Ring	£2.40 £2.00
14	HP16025-ZM3-004 Available to backorder	O Ring	£2.82 £2.35
15	HP16026-ZM3-004 Available to backorder	Primer Pump	£4.67 £3.89
16	HP16027-ZM3-004 Available to backorder	Swivel	£5.11 £4.26
17	HP16028-ZM3-004 Available to backorder	Collar Screw	£1.85 £1.54
18	HP16029-ZM3-004 Available to backorder	Screw	£1.85 £1.54
19	HP16030-ZM3-004 Available to backorder	Pump Spring	£1.75 £1.46
20	HP16031-ZM3-004 Available to backorder	Washer	£1.81 £1.51
21	HP16032-ZM3-014 In stock	Primer Bulb	£4.96 £4.13
22	HP16035-ZM3-802 Available to backorder	Fuel Inlet Filter	£16.85 £14.04
23	HP16100-Z0H-063 Available to backorder	Carburettor Assy	£91.32 £76.10
24	HP16221-Z0H-010 Available to backorder	Carburettor Gasket	£7.40 £6.17
25	HP19631-Z0H-010 Available to backorder	Shroud	£14.03 £11.69
26	HP90014-Z0H-003 Available to backorder	Carburettor Bolt	£0.98 £0.82
27	HP90018-Z0H-003 Available to backorder	Bolt M5 X 16	£0.98 £0.82
29	HP91301-ZM3-000 Available to backorder	O Ring 14.8 X 2.4	£1.46 £1.22
30	HP91308-Z0H-003 Available to backorder	O Ring	£1.44 £1.20
31	HP99101-ZM5-0330 Available to backorder	Jet	£15.16 £12.63
31	HP99101-Z0H-0320 Available to backorder	Jet	£8.63 £7.19
31	HP99101-ZM5-0340 Available to backorder	Jet	£15.16 £12.63
