Honda UMK422K1-UT3D - Fuel Tank Diagram

Name: Honda UMK422K1-UT3D - Fuel Tank Diagram
SKU: umk422k1_ut3d_fuel_tank-group
Price: 1.24 GBP
Availability: InStock

Part No. umk422k1_ut3d_fuel_tank-group

Description

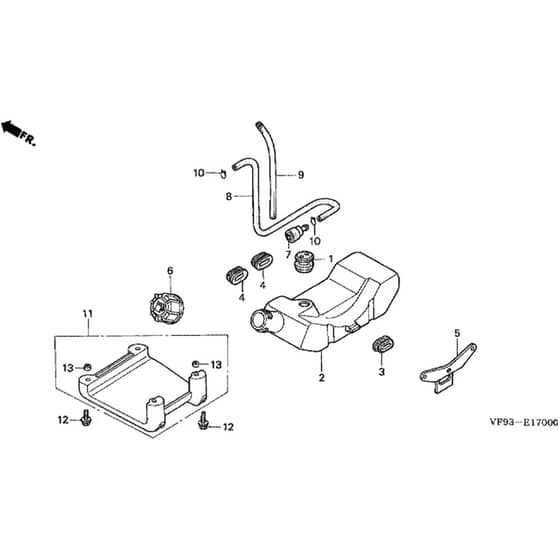

Honda UMK422K1-UT3D Brushcutter Parts Diagram

	Part No.	Details
1	HP17504-ZM3-003 In stock	Fuel Pipe Grommet	£6.01 £5.01
2	HP17511-ZM3-023 Available to backorder	Fuel Tank	£31.80 £26.50
3	HP17532-ZM3-010 In stock	Tank Mounting Rubber	£2.52 £2.10
6	HP17620-ZM3-053 Available to backorder	Fuel Cap	£12.04 £10.03
7	HP17672-Z0H-003 In stock	Fuel Filter	£10.39 £8.66
8	HP17701-ZM3-003 Available to backorder	Fuel Pipe	£7.96 £6.63
9	HP17702-ZM3-003 Available to backorder	Fuel Return Pipe	£2.96 £2.47
10	HP91401-ZM3-003 Available to backorder	Tube Clip	£2.04 £1.70
12	HP90012-ZM3-U30 Available to backorder	Flange Bolt	£4.57 £3.81
13	HP91502-ZM3-000 Available to backorder	Top Cover Collar	£1.49 £1.24
