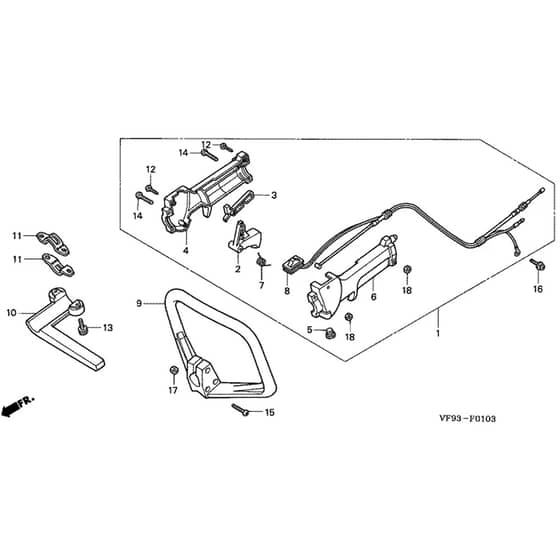

Honda UMK422K1-LE - Loop Handle Diagram

Description

Honda UMK422K1-LE Brushcutter Parts Diagram

	Part No.	Details
1	HP17850-VF9-V41 Available to backorder	Lever	£62.04 £51.70
2	HP17851-VF9-V41 Available to backorder	Throttle Lever	£6.30 £5.25
3	HP17852-VF9-V41 Available to backorder	Throttle Lock Lever	£3.98 £3.32
4	HP17853-VF9-V41 Available to backorder	Throttle Lever Grip	£9.46 £7.88
5	HP17854-VF9-V31 Available to backorder	Cap	£1.44 £1.20
6	HP17856-VF9-V41 Available to backorder	Throttle Lever Grip	£8.33 £6.94
7	HP17859-VF9-V31 Available to backorder	Spring	£1.54 £1.28
9	HP53121-VF9-611 Available to backorder	Loop Handle	£47.70 £39.75
10	HP53122-VF9-G41 Available to backorder	Loop Handle Bar	£27.25 £22.71
11	HP53123-VF9-G41 Available to backorder	Loop Handle Holder	£6.30 £5.25
12	HP90101-VF9-V31 Available to backorder	Screw	£2.60 £2.17
13	HP90113-VF9-G40 Available to backorder	Socket Head Bolt 6 X 18	£4.36 £3.63
14	HP93500-05020-0G Available to backorder	Screw	£0.16 £0.13
15	HP93500-05028-0A Available to backorder		£1.44 £1.20
16	HP93893-0501200 Available to backorder	Screw	£1.36 £1.13
17	HP94001-050000S Available to backorder	Hex Nut 5Mm	£3.22 £2.68
18	HP94002-050-700S Available to backorder	Nut	£3.22 £2.68
