Honda UMK422-LT4E - Gear Case Diagram

Description

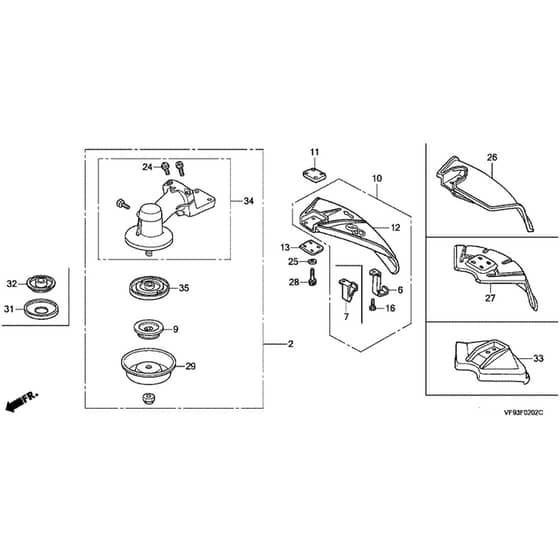

Honda UMK422-LT4E Brushcutter Parts Diagram

	Part No.	Details
2	HP41100-VL1-633 Available to backorder	Gear Case Assy	£224.88 £187.40
6	HP72571-VF9-J01 Available to backorder	Line Cutter Plate	£19.22 £16.02
9	HP72621-VF9-003 Available to backorder	Blade Holder	£13.32 £11.10
10	HP76240-VF9-J01 Available to backorder	Grass Deflector Assy	£38.14 £31.78
11	HP76242-VF9-J00 Available to backorder	Deflector Spacer	£5.36 £4.47
12	HP76247-VF9-J01 Available to backorder	Grass Deflector	£25.49 £21.24
16	HP90101-VJ3-003 Available to backorder	Bolt	£1.72 £1.43
24	HP93892-05010-07 Available to backorder	Screw	£1.50 £1.25
25	HP94101-05000 Available to backorder	Plain Washer 5Mm	£0.96 £0.80
26	HP76247-VF9-E31 Available to backorder	Grass Deflector	£30.23 £25.19
29	HP72623-VL6-P31 Available to backorder	Nut Cover	£23.51 £19.59
35	HP76210-VK4-A01 Available to backorder	Blade Holder Assy	£24.49 £20.41
