Honda UMK422-LT4E - Fan Cover Diagram

Description

Honda UMK422-LT4E Brushcutter Parts Diagram

	Part No.	Details
1	HP17557-VF9-A00 Available to backorder	Tank Guard	£28.63 £23.86
2	HP19600-VF9-A00ZA Available to backorder	Fan Cover	£214.43 £178.69
3	HP19611-VF9-000ZB Available to backorder	Fan Cover	£104.03 £86.69

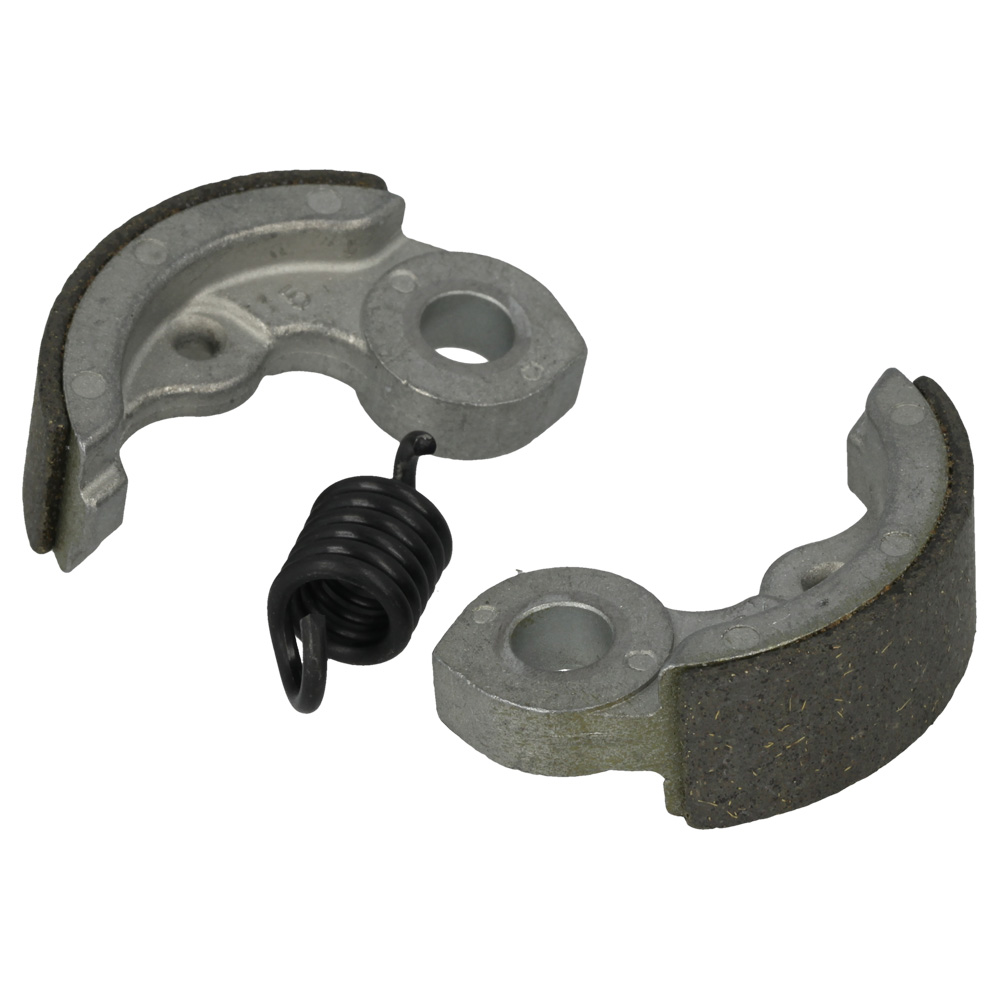

4	HP22000-ZM3-003 Available to backorder	Clutch Assy	£27.71 £23.09
5	HP22100-VF9-A00 Available to backorder	Clutch Outer	£49.10 £40.92

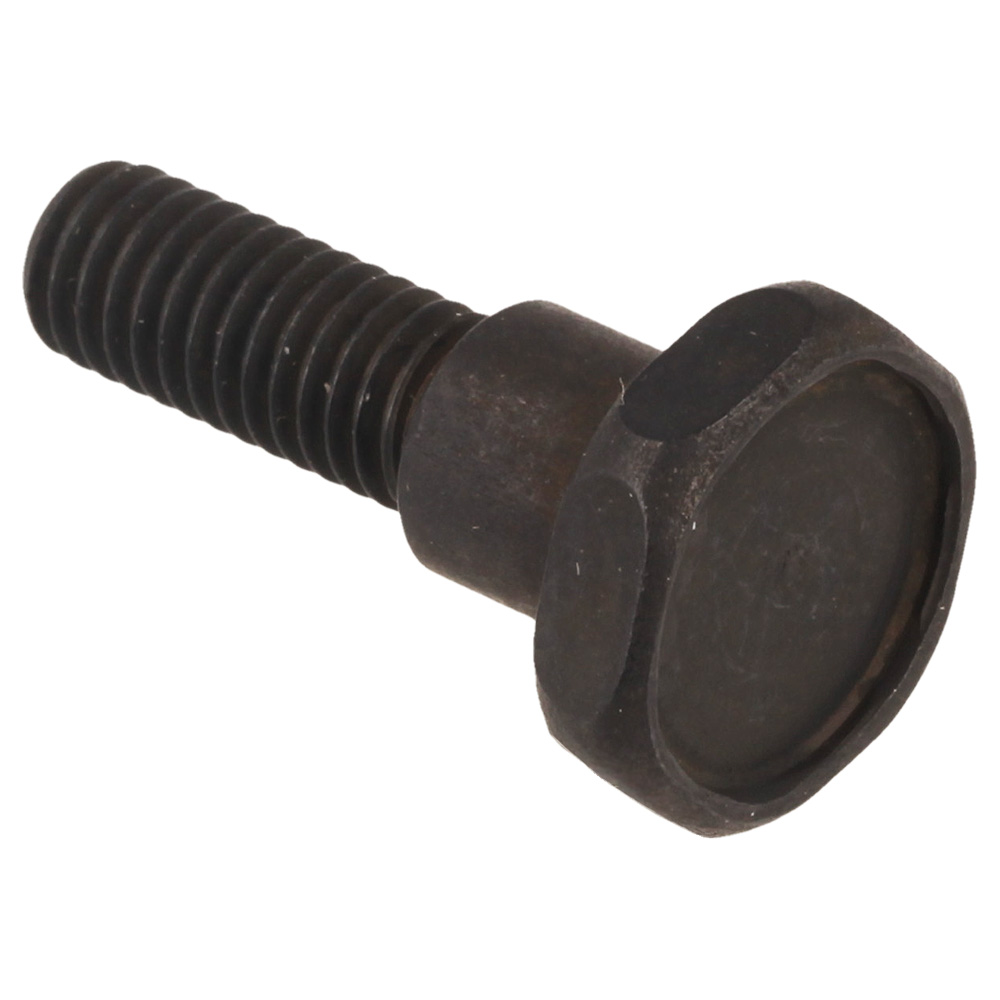

6	HP22253-ZM3-003 Available to backorder	Clutch Bolt	£2.41 £2.01
7	HP22254-ZM3-003 Available to backorder	Clutch Washer	£1.30 £1.08
8	HP50225-VF9-000 Available to backorder	Engine Mounting Bracket	£33.77 £28.14
9	HP50237-VF9-000 Available to backorder	Engine Mounting Rubber	£8.16 £6.80
10	HP53549-VF9-000 Available to backorder	Internal Circlip	£4.16 £3.47
11	HP90003-892-000 Available to backorder	Flange Bolt 5X12	£1.86 £1.55
12	HP90005-ZM3-000 Available to backorder	Flange Bolt 5 X 18	£1.43 £1.19
13	HP90112-GK8-010 Available to backorder	Flange Bolt	£3.58 £2.98
14	HP94510-12000 Available to backorder	External Circlip 12Mm	£1.08 £0.90
15	HP94520-32000 Available to backorder	Internal Circlip 32Mm	£2.22 £1.85
16	HP96130-62010-10 Available to backorder		£14.40 £12.00
