Honda HRZ536C1-TDEA - Transmission Diagram

Description

Honda HRZ536C1-TDEA Rotary Mower Parts Diagram

	Part No.	Details

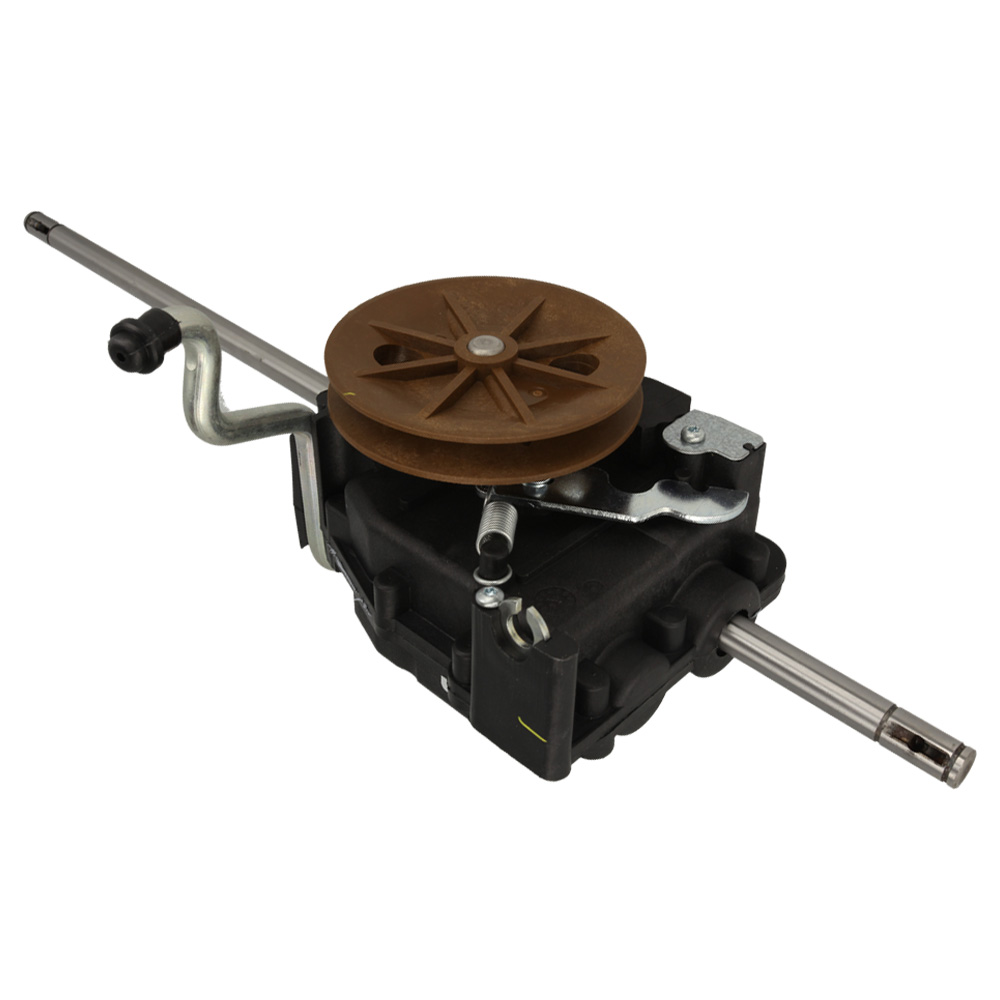

1	HP20001-VG4-H02 Available to backorder	Transmission Assy	£198.12 £165.10
2	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£8.69 £7.24
3	HP22421-VG4-H00 Available to backorder	Driven Pulley	£36.92 £30.77
4	HP24468-VE1-T00 Available to backorder	Wheel Tension Spring	£10.26 £8.55
5	HP93913-252-20 Available to backorder	Tapping Screw 5X12 Po	£1.45 £1.21
7	HP94305-50362 Available to backorder	Pin	£3.24 £2.70
9	HP23439-VE0-851 Available to backorder	Clutch Arm Return Spring	£4.56 £3.80
10	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.76 £4.80
