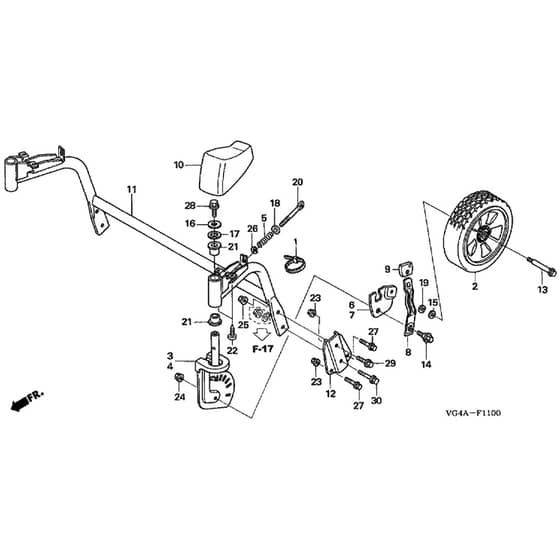

Honda HRZ536C1-TDEA - Front Wheel Diagram

Name: Honda HRZ536C1-TDEA - Front Wheel Diagram
SKU: hrz536c1_tdea_front_wheel-group
Price: 0.88 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRZ536C1-TDEA - Front Wheel Diagram

Description

Honda HRZ536C1-TDEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP32901-VB5-A00 In stock	Cable Tie	Was £6.47 £5.39 Special Price £4.30 £3.58
2	HP42710-VG3-000 Available to backorder	Front Wheel	£36.23 £30.19
3	HP42725-VG4-T00ZA Available to backorder	Wheel	£122.70 £102.25
4	HP42735-VG4-T00ZA Available to backorder	Wheel	£118.56 £98.80
5	HP42739-VG4-T00 Available to backorder	Caster Lock Spring	£2.99 £2.49
6	HP42911-VG3-000 Available to backorder	Adjuster Arm Front R H	£13.98 £11.65
7	HP42921-VG3-000 Available to backorder	Adjuster Arm Front L H	£13.98 £11.65
8	HP42951-VG3-000 Available to backorder	Front Adjuster Plate	£10.21 £8.51
9	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.76 £1.47
10	HP44314-VG4-T00 Available to backorder	Wheel Pipe Cover	£15.84 £13.20
13	HP90101-VG4-T00 Available to backorder	Wheel Shaft Bolt	£5.00 £4.17
14	HP90102-VG4-T00 Available to backorder	Adjuster Arm Bolt	£2.34 £1.95
15	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
16	HP90471-SB0-000 Available to backorder	Washer	£6.59 £5.49
17	HP90501-VG4-T00 Available to backorder	Caster Washer	£2.84 £2.37
18	HP90502-VG4-T00 Available to backorder	Washer	£1.10 £0.92
19	HP90505-VG3-000 Available to backorder	Thrust Washer 13 X 27 X 1	£1.20 £1.00
20	HP90751-VG4-T00 Available to backorder	Lock Pin	£10.32 £8.60
21	HP91552-VG4-T00 Available to backorder	Caster Bush	£6.28 £5.23
22	HP93901-35210 Available to backorder	Tapping Screw	£1.50 £1.25
23	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
24	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
25	HP94050-08070 Available to backorder	Flange Nut 8Mm	£3.61 £3.01
26	HP94540-05010 Available to backorder	E Ring	£3.50 £2.92
27	HP95701-06014-07 Available to backorder	Bolt	£1.06 £0.88
28	HP95701-0801600 Available to backorder	Flange Bolt 8 X 16	£1.54 £1.28
29	HP95701-08016-07 Available to backorder	Bolt	£1.16 £0.97
30	HP95701-08025-07 Available to backorder	Bolt	£1.82 £1.52
