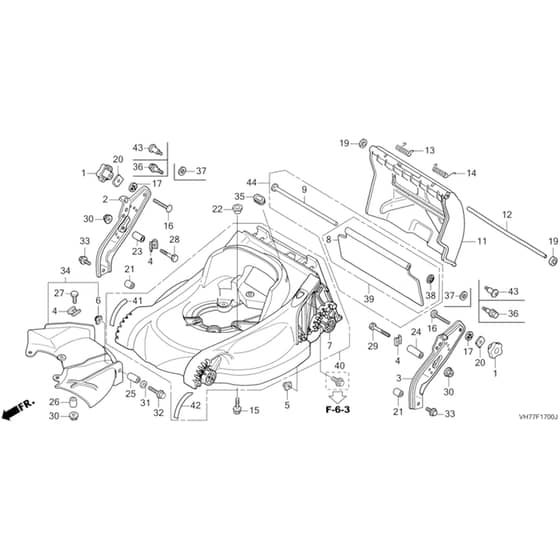

Honda HRX537C6 - VYEA - Cutter Housing Diagram

Name: Honda HRX537C6 - VYEA - Cutter Housing Diagram
SKU: hrx537c6_vyea_cutter_housing-group
Price: 0.99 GBP
Availability: InStock

Part No. hrx537c6_vyea_cutter_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C6 - VYEA - Cutter Housing Diagram

Description

Honda HRX537C6 - VYEA Rotary Mower Parts Diagram

	Part No.	Details
2	HP53130-VH7-K00ZA Available to backorder	Handle Stay R H	£36.04 £30.03
3	HP53135-VH7-K00ZA Available to backorder	Handle Stay L H	£36.04 £30.03
4	HP53137-VH7-000 Available to backorder	Handle Stay Holder	£2.81 £2.34
5	HP61304-165-013 Available to backorder	Head Light Set Nut	£8.46 £7.05
6	HP61304-958-003 In stock	Nut	£8.28 £6.90
7	HP76111-VH7-F55ZA Available to backorder	Cutter Housing	£185.16 £154.30
8	HP06761-VH7-306 In stock	Shield Kit	£44.45 £37.04
9	HP76138-VH7-000 Available to backorder	Shield Shaft	£24.47 £20.39
11	HP76281-VH7-010 Available to backorder	Discharge Guard	£83.88 £69.90
12	HP76282-VH7-000 Available to backorder	Guard Shaft	£26.44 £22.03
13	HP76284-VH7-000 Available to backorder	Guard Return Spring R H	£15.14 £12.62
14	HP76294-VH7-000 Available to backorder	Guard Return Spring L H	£17.36 £14.47
15	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.54 £2.95
19	HP90301-VG4-000 In stock	Push Nut	£1.19 £0.99
21	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.70 £2.25
22	HP91553-VH7-000 Available to backorder	Collar Bed	£2.17 £1.81
23	HP91554-VH7-000 Available to backorder	Collar	£2.20 £1.83
24	HP91555-VH7-000 Available to backorder	Collar	£2.17 £1.81
25	HP91558-VE2-000 Available to backorder	Scroll Collar	£1.37 £1.14
26	HP91558-VH7-010 Available to backorder	Collar	£2.20 £1.83
27	HP92101-08030-0A Available to backorder	Bolt	£1.91 £1.59
28	HP92101-08040-0A Available to backorder	Bolt	£1.91 £1.59
29	HP92101-08050-0A Available to backorder	Bolt	£2.48 £2.07
30	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
33	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.03 £1.69
34	HP76105-VH7-010 In stock	Guide Scroll Assy	Was £60.83 £50.69 Special Price £42.34 £35.28
35	HP76231-952-770 Available to backorder	Cable Grommet	£6.00 £5.00
37	HP90503-VL0-B00 Out of stock	Washer	£2.03 £1.69
38	HP90301-VG3-020 Available to backorder	Push Nut	£1.54 £1.28
41	HP87138-VH7-000 Available to backorder	Decal	£1.28 £1.07
42	HP87139-VH7-000 In stock	Decal	£1.26 £1.05
43	HP90102-VL0-P00 Available to backorder	Special Bolt 8 X 32	£2.48 £2.07
