Honda HRX537C6 - HZEA - Handle Pipe Diagram

Name: Honda HRX537C6 - HZEA - Handle Pipe Diagram
SKU: hrx537c6_hzea_handle_pipe-group
Price: 0.62 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

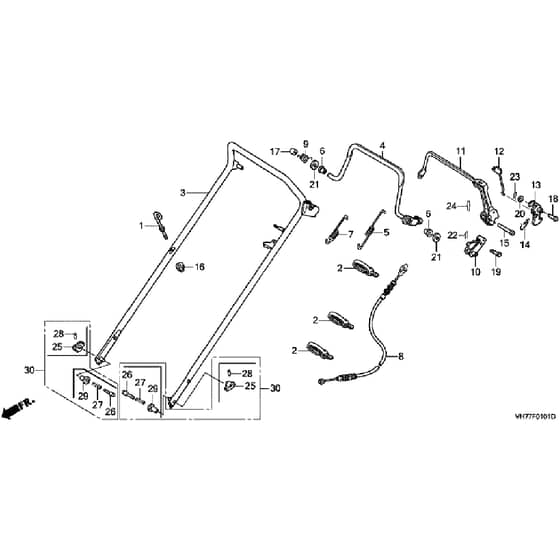

Honda HRX537C6 - HZEA - Handle Pipe Diagram

Description

Honda HRX537C6 - HZEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP28475-VL0-S00 Available to backorder	Rope Guide	£4.86 £4.05
2	HP32901-VB5-A00 In stock	Cable Tie	Was £6.47 £5.39 Special Price £4.30 £3.58
3	HP53110-VH7-L50ZA Available to backorder	Handle	£142.42 £118.68
4	HP54410-VE1-R00 Available to backorder	Clutch Lever	£29.93 £24.94
5	HP54411-VB3-800 In stock	Clutch Spring	£12.20 £10.17
6	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
7	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.52 £5.43
8	HP54530-VH7-000 In stock	Roto-Stop Cable	£26.04 £21.70
9	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
10	HP75128-VE1-R00 Available to backorder	Roto-Stop Arm	£14.84 £12.37
11	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£72.36 £60.30
12	HP75165-VE0-L00 In stock	Ratchet Push Rod	£11.04 £9.20
13	HP75166-VE1-R00 In stock	Lever Lock	£4.32 £3.60
14	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
15	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
16	HP90303-VG3-000 Available to backorder	Lock Nut 6Mm	£0.74 £0.62
17	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
18	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
19	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.32 £2.77
20	HP94101-06800 Available to backorder	Plain Washer 6Mm	£0.96 £0.80
21	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
22	HP94201-16120 Available to backorder	Split Pin	£1.28 £1.07
23	HP94251-06000 In stock	Lock Pin 6Mm	£1.14 £0.95
24	HP94251-08000 In stock	Lock Pin 8Mm	£1.86 £1.55
25	HP53125-VL0-B00ZA In stock	Handle Grip	£25.52 £21.27
26	HP53158-VL0-B01 In stock	Pin 8Mm	£2.44 £2.03
27	HP53367-VL0-B00 In stock	Handle Adjusting Spring	£1.46 £1.22
28	HP90751-VL0-B00 In stock	Pin	£1.22 £1.02
29	HP91551-VL0-B00 In stock	Handle Height Collar	£4.56 £3.80
