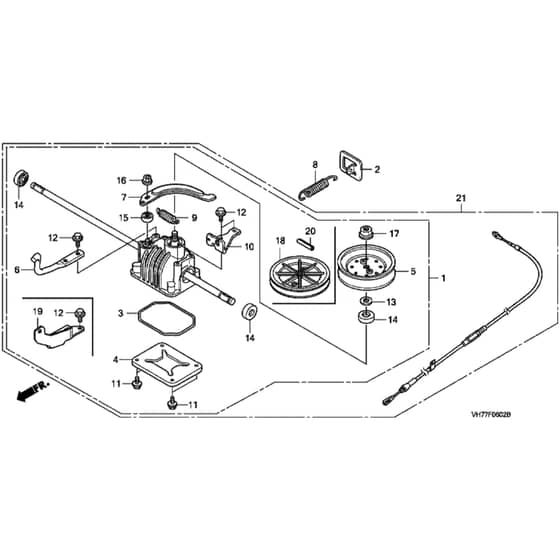

Honda HRX537C2 - VKEA - MAGA 1700001- Transmission Diagram

Description

Honda HRX537C2 - VKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VL0-M00 Available to backorder	Transmission Assy	£370.08 £308.40
2	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£9.46 £7.88
3	HP21581-VL0-B00 Available to backorder	O Ring	£4.31 £3.59
7	HP22533-VH7-L00 Available to backorder	Arm Control	£18.40 £15.33
8	HP24468-VE1-T00 Available to backorder	Wheel Tension Spring	£12.60 £10.50
9	HP43151-VL0-B00 Available to backorder	Return Spring	£5.26 £4.38
11	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
14	HP91251-VL0-B00 Available to backorder	Oil Seal 12.7 X 28.6 X 6.4	£4.91 £4.09

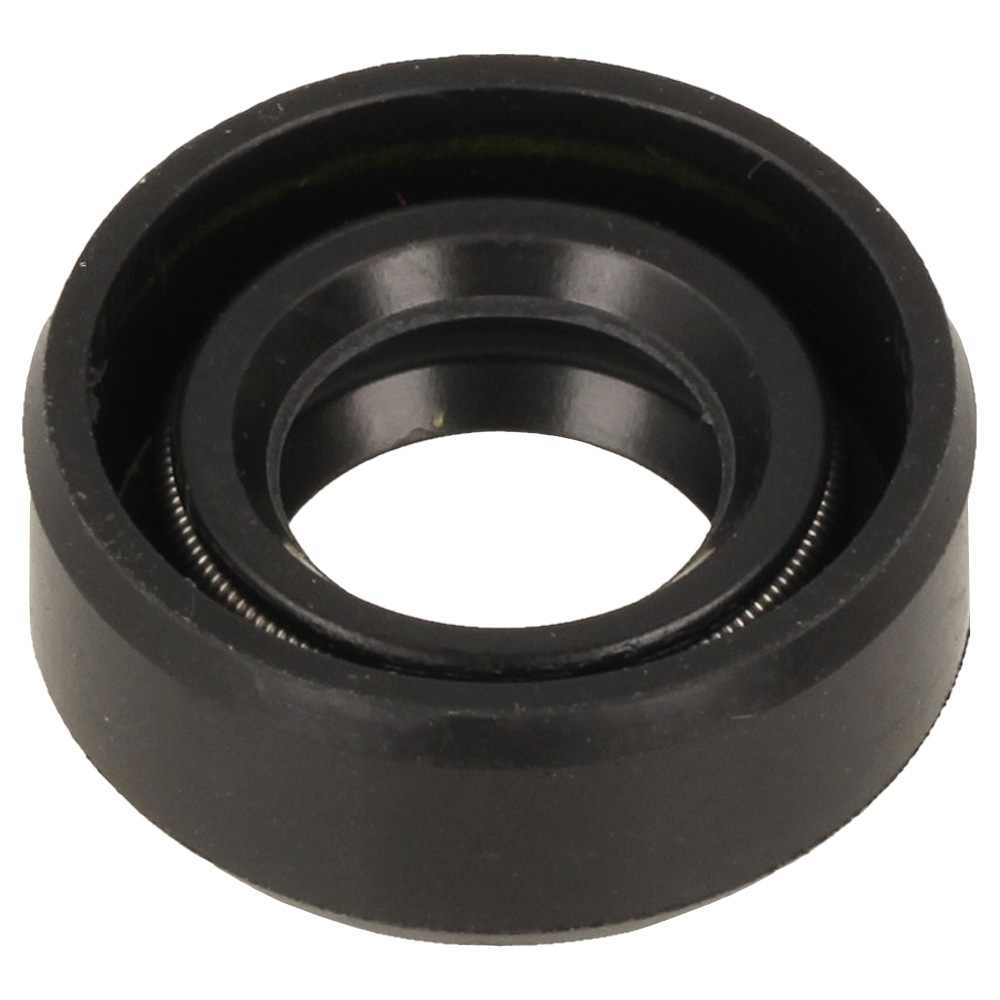

15	HP91252-VL0-B00 Available to backorder	Oil Seal	£3.31 £2.76
16	HP94050-06000 In stock	Flange Nut 6Mm	£3.37 £2.81
18	HP22421-VH7-L00 Available to backorder	Pulley	£48.61 £40.51
20	HP90752-VH7-L00 Available to backorder	Pin	£2.60 £2.17
