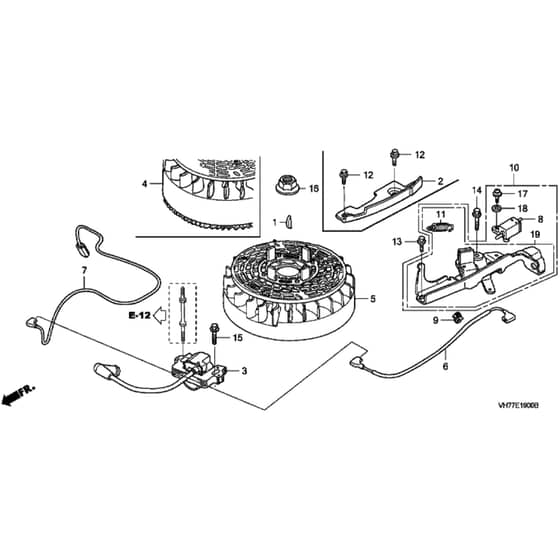

Honda HRX537C2 - VKEA - MAGA 1700001- Flywheel Diagram

Description

Honda HRX537C2 - VKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.08 £5.07
3	HP30500-ZL8-014 Available to backorder	Ignition Coil Assy	£81.48 £67.90

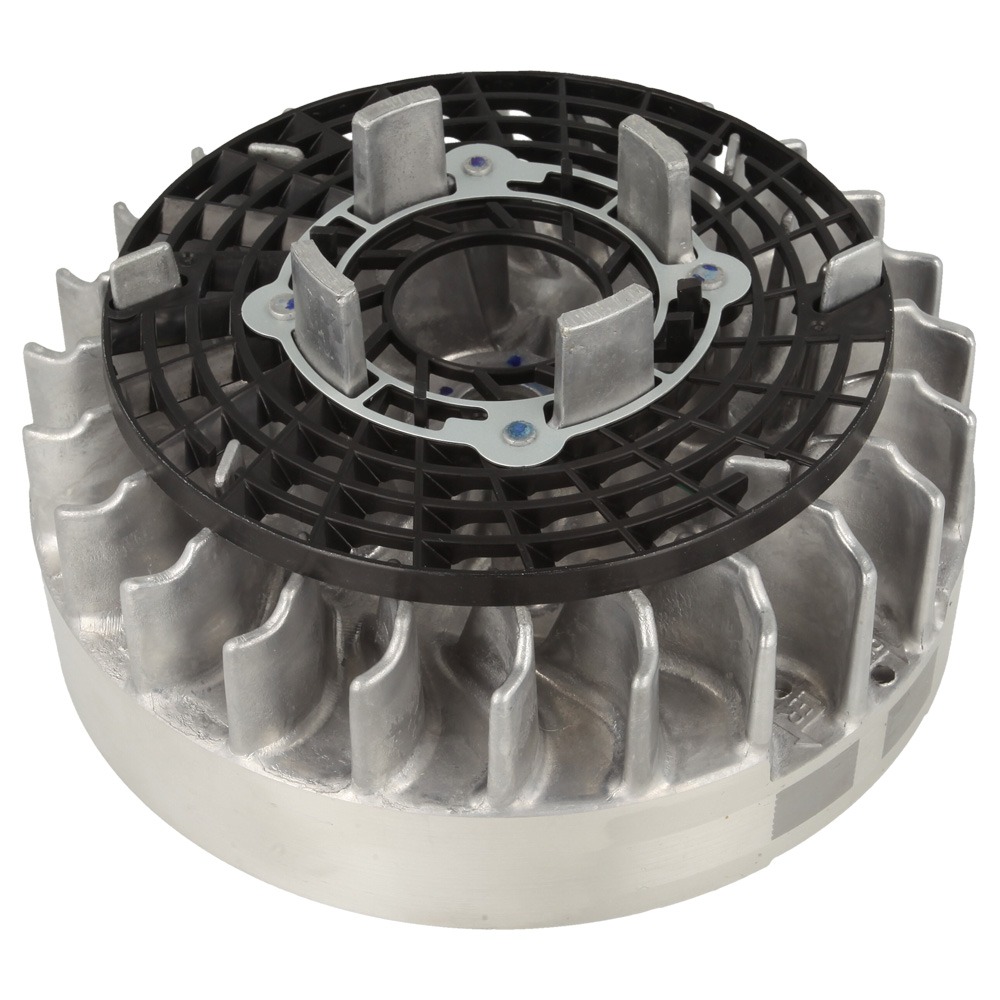

5	HP31105-Z0Y-800 Available to backorder	Flywheel Assy	£54.58 £45.48
6	HP32195-Z0L-000 Available to backorder	Cord Stop Switch	£11.09 £9.24
8	HP35120-ZM0-003 Available to backorder	Engine Stop Switch Assy	£12.23 £10.19
9	HP90681-959-003 Available to backorder	Cable Clip	£0.97 £0.81
9	HP51125-Z0L-003 Available to backorder	Wire Holder	£2.74 £2.28
11	HP75113-ZM0-000 Available to backorder	Spring	£2.72 £2.27
13	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
14	HP90018-ZE1-000 Available to backorder	Flange Bolt	£2.96 £2.47
16	HP90213-S3Y-000 Available to backorder	Flange Nut	£5.52 £4.60
17	HP93892-0401200 Available to backorder	Screw	£1.51 £1.26
18	HP94103-040-00 Available to backorder	Washer 4Mm	£0.89 £0.74
19	HP75100-Z0L-901 Available to backorder	Brake Assy	£51.14 £42.62
