Honda HRX537C2 - HZEA - MAGA 1700001- Transmission Diagram

Description

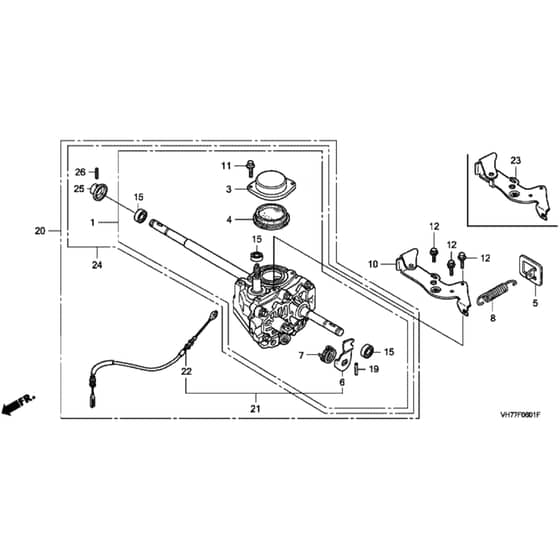

Honda HRX537C2 - HZEA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP20001-VH7-A01 Available to backorder	Transmission Assy	£463.20 £386.00
3	HP21230-VE5-A00 Available to backorder	Oil Cap Assy	£24.31 £20.26
4	HP21235-VE5-303 Available to backorder	Oil Cap O Ring	£9.32 £7.77
5	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£8.69 £7.24
6	HP22533-VH7-A00 Available to backorder	Control Arm	£19.32 £16.10
7	HP24134-VE5-A00 Available to backorder	Control Arm Return Spring	£3.22 £2.68
8	HP24468-VE1-T00 Available to backorder	Wheel Tension Spring	£10.26 £8.55
11	HP90003-892-000 Available to backorder	Flange Bolt 5X12	£1.86 £1.55
12	HP90029-888-000 Available to backorder	Flange Bolt 6 X 16	£4.06 £3.38
15	HP91204-KE8-003 Available to backorder	Oil Seal	£6.84 £5.70
19	HP90751-VE5-A00 Available to backorder	Pin	£6.25 £5.21
22	HP54630-VH7-A04 In stock	Speed Change Cable	£26.64 £22.20
23	HP51125-VE1-R21 Available to backorder	Wire Holder	£31.03 £25.86
24	HP20001-VE5-A01 Available to backorder	Transmission Assy	£713.58 £594.65
25	HP21912-VE5-A00 Available to backorder	Grass Guard	£4.73 £3.94
26	HP90752-VE5-A00 Available to backorder	Pin	£7.80 £6.50
