Honda HRX537C2 - HYEA - MAGA 1700001- Throttle Lever Diagram

Name: Honda HRX537C2 - HYEA - MAGA 1700001- Throttle Lever Diagram
SKU: hrx537c2_hyea_maga_1700001_throttle_lever-group
Price: 0.81 GBP
Availability: InStock

Part No. hrx537c2_hyea_maga_1700001_throttle_lever-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRX537C2 - HYEA - MAGA 1700001- Throttle Lever Diagram

Description

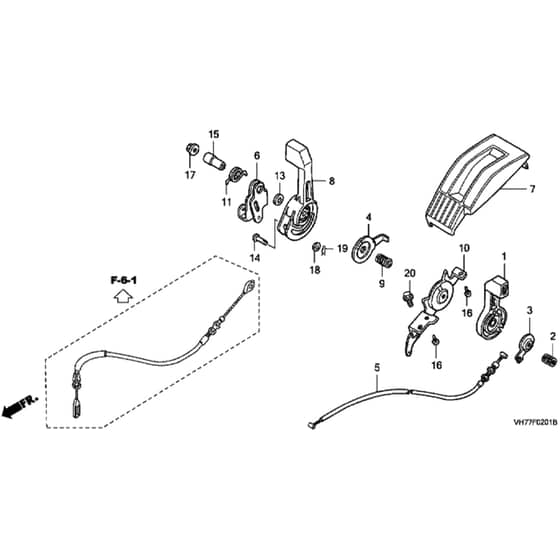

Honda HRX537C2 - HYEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP17851-VH7-N50 Available to backorder	Throttle Lever	£12.71 £10.59
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
3	HP17859-VA3-800 Available to backorder	Seat Spring	£6.46 £5.38
4	HP17859-VE1-R20 Available to backorder	Plate	£4.66 £3.88
5	HP17910-VH7-000 Available to backorder	Throttle Cable	£19.94 £16.62
6	HP24412-VE0-J50 Available to backorder	Change Arm Lever	£19.20 £16.00
7	HP54231-VA3-800 Available to backorder	Control Cover	£48.25 £40.21
8	HP54311-VE0-J50 In stock	Change Lever	£17.53 £14.61
9	HP54314-VA3-P00 Available to backorder	Change Lever Spring	£3.05 £2.54
10	HP54315-VE1-R00 Available to backorder	Stopper Lever	£41.03 £34.19
11	HP54318-VA3-P00 Available to backorder	Arm Return Spring	£3.78 £3.15
13	HP90501-VE1-R00 Available to backorder	Washer	£5.66 £4.72
14	HP90752-VA3-P01 In stock	Pin 6 X 22	£3.35 £2.79
15	HP91551-VE1-R20 Available to backorder	Collar	£4.24 £3.53
16	HP93901-35210 Available to backorder	Tapping Screw	£1.51 £1.26
17	HP94050-06080 Available to backorder	Flange Nut 6Mm	£3.14 £2.62
18	HP94101-06800 Available to backorder	Plain Washer 6Mm	£1.03 £0.86
19	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
20	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
